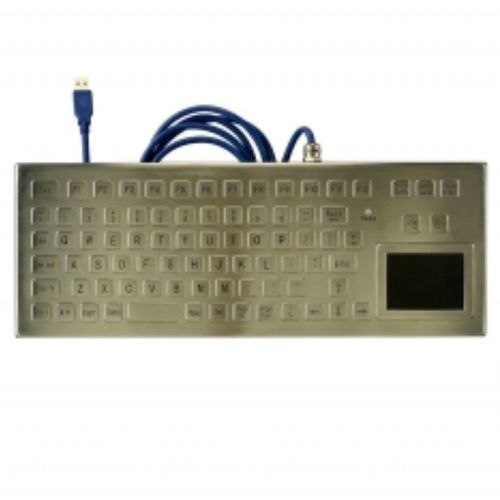

Desktop keyboard CK-KB360124-TPDT

with mechanical keyswith touchpadindustrial

FEATURES: - Movable desktop stainless steel keyboard. - One piece complete waterproof silicone rubber inside. - Rugged tough touchpad with more than 10 million slide lifetime. - Laser engraving letters. - Metal dome key switches. IP65 rated waterproof and vandal resistant brushed 316L stainless steel industrial keyboard with integrated tough touchpad, this is a fully-rugged mobile desktop keyboard for mining environment and marine console or industrial console. It is specially designed to meet IP65 specifications and it is anti-corrosion 316L stainless steel which covered the shortage of normal 304 stainless steel for corrosion spray or salt mist environment, which means it is resistant to harsh environment with, salt mist, corrosion spray, dirt, dust, water, ice, low temperature, chemical liquids, corrosives, disinfectants, oil, etc. Mining: Industrial console: - 375.0mm x 140.0mm (front Panel). - RoHS, CE and FCC 12 months. Technical Specifications: - Operating Temperature: -20 °C to +60 °C - Storage Temperature: -30°C to +70°C - Waterproof rate: IP65 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 - Electronics: Industrial level - Humidity Resistant: 100% - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Actuation Force: 2.0 N+/-0.1N - Key Travel: 0.5 mm - Key switch Lifetime: 5 mil. Operations - Lifetime of touchpad: more than 10 mil. slide - Lifespan: > 3 years - MTBF: >50000H - MTTR: <30min - G.W.: appr. 2.5 KGs - Supply Voltage: +5V DC +/- 5% - Current Rating: appr. 50mA - EMC Emission: EN55022(B) - Saline mist: 96 hours, IEC 60512-6 - Damp heat test: at + 40º C: 21 days, IEC 60512-6 - Dry heat test: at + 85º C: 10 days, IEC 60512-6 - OS: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android - Touchpad mouse: -Mutual Capacitance sensing -X/Y position sensing resolution: 40 counts/mm -X/Y position reporting: Relative -Output (self-detectable depending on cable): PS2 or USB -Tracking speed: Maximum 1,016 m/sec -Power supply voltage: 5 VDC ± 0.25V
