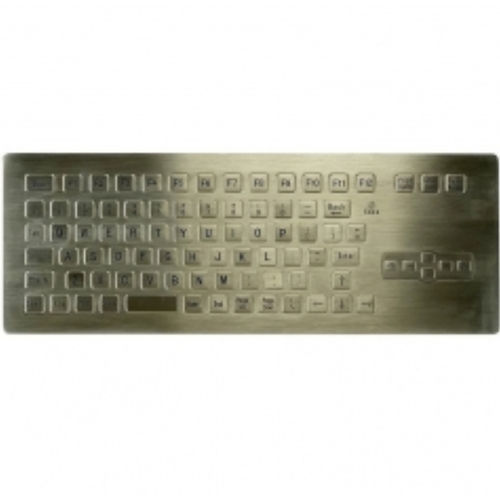

Panel-mount keyboard CK-KB390150

with mechanical keyswith mouseindustrial

The IP67 rated waterproof industrial keyboard with integrated mouse function direction keys and mouse buttons is IK10 rated for anti-explosion and robustness in panel mounting solutions for mining environments. It is designed to resist heavy strikes and is super flat for easy cleaning. The keyboard is made with anti-corrosion and brushed 316L stainless steel, making it resistant to harsh environments with salt mist, moisture, corrosion spray, dirt, dust, water, chemical liquids, corrosives, and disinfectants. Applications include: - Cement factory - Mining - Oil rig With integrated mouse function keys, it resists heavy vibration, movement, and strikes during operations. The flat stainless steel keys with metal dome key switches make it easy to clean with direct water or a wet towel. Dimensions: 390.0mm x 150.0mm (front Panel). RoHS, CE, and FCC certified with a 12-month warranty. - Operating Temperature: 0 °C to +60 °C - Storage Temperature: -30°C to +70°C - Waterproof rate: IP67 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 - Electronics: Industrial level - Humidity Resistant: 100% - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Actuation Force: 2.0 N +/-0.2 N - Key Travel: 0.5 mm - Key switch Lifetime: 5 million operations - Lifespan: > 3 years - MTBF: >50000H - MTTR: <30min - G.W.: approx. 2.5 KGs - Supply Voltage: +5V DC +/- 5% - Current Rating: approx. 50 mA - EMC Emission: EN55022(B) - Saline mist: 96 hours, IEC 60512-6 - Damp heat test: at + 40º C: 21 days, IEC 60512-6 - Dry heat test: at + 85º C: 10 days, IEC 60512-6 - OS Compatibility: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android - Integrated mouse: Integrated vandalproof and strong mouse buttons
