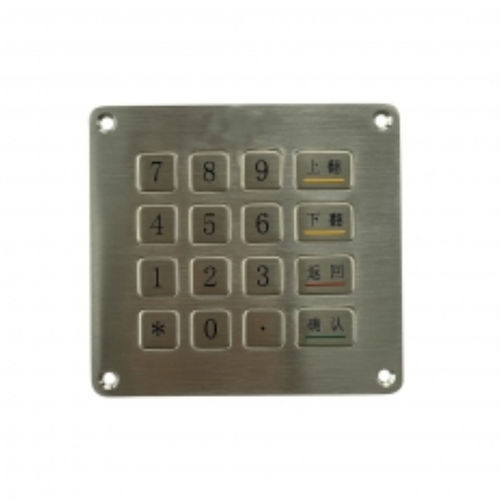

12-key keypad CK-KE10093

16-keypanel-mountstainless steel

16 keys IP67 rated waterproof and brushed 304 stainless steel industrial keypad, this is a IK10 rated and fully-rugged panel-mounted keypad for mining environment or industrial console. It is specially designed to meet IP67 specifications, which means it is resistant to harsh environment with, dirt, dust, water, ice, low temperature oil, etc. - Mining: Industrial console: - 100.0mm x 93.0mm (front Panel). It’s available to produce the keypad’s layout into different languages, different letters, customized letters or symbols according to user’s specific requirements. RoHS, CE and FCC 12 months - Operating Temperature: -20 °C to +60 °C - Storage Temperature: -30°C to +70°C - Waterproof rate: IP67 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 - Electronics: Industrial level - Humidity Resistant: 100% - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Actuation Force: 2.0 N+/-0.2 N - Key Travel: 0.5 mm - Key switch Lifetime: 5 mil. Operations - Lifespan: > 3 years - MTBF: >50000H - MTTR: <30min - G.W.: appr. 0.8 KGs - Supply Voltage: +5V DC +/- 5% - Current Rating: appr. 20 mA - EMC Emission: EN55022(B) - Saline mist: 96 hours, IEC 60512-6 - Damp heat test: at + 40º C: 21 days, IEC 60512-6 - Dry heat test: at + 85º C: 10 days, IEC 60512-6 - OS: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android
