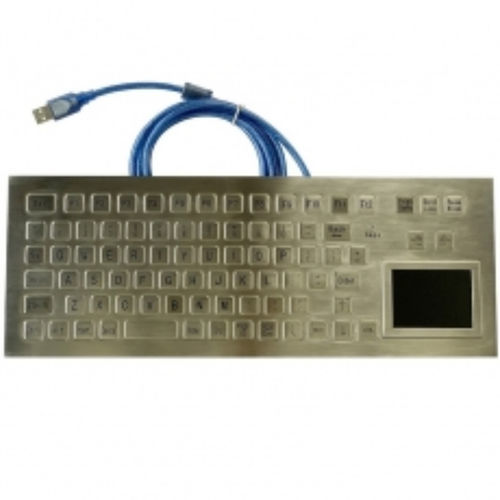

Panel-mount keyboard CK-KB373140-TP

with mechanical keyswith touchpadPS2

The IP65 rated waterproof and vandal resistant brushed 316L stainless steel industrial keyboard with integrated tough touchpad is a fully-rugged panel-mounted keyboard designed for mining environments, marine consoles, or industrial consoles. It is specially designed to meet IP65 specifications and is made from anti-corrosion 316L stainless steel, which is resistant to harsh environments such as salt mist, corrosion spray, dirt, dust, water, ice, low temperature, chemical liquids, corrosives, disinfectants, and oil. Features include: - Stainless steel front mounting panel with mounting screws - One piece complete waterproof silicone rubber inside - Rugged tough touchpad with more than 10 million slide lifetime - Laser engraving letters - Metal dome key switches Technical data: - Dimensions: 373.0mm x 140.0mm (front Panel) - Operating Temperature: 0 °C to +60 °C - Storage Temperature: -30°C to +70°C - Waterproof rate: IP65 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 - Electronics: Industrial level - Humidity Resistant: 100% - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Actuation Force: 2.0 N+/-0.1N - Key Travel: 0.5 mm - Key switch Lifetime: 5 million operations - Lifetime of touchpad: more than 10 million slides - Lifespan: > 3 years - MTBF: >50000H - MTTR: <30min - G.W.: approx. 2.0 KGs - Supply Voltage: +5V DC +/- 5% - Current Rating: approx. 50mA - EMC Emission: EN55022(B) - Saline mist: 96 hours, IEC 60512-6 - Damp heat test: at + 40º C: 21 days, IEC 60512-6 - Dry heat test: at + 85º C: 10 days, IEC 60512-6 - OS Compatibility: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android - Touchpad mouse: Mutual Capacitance sensing, X/Y position sensing resolution: 40 counts/mm, X/Y position reporting: Relative, Output: PS2 or USB, Tracking speed: Maximum 1,016 m/sec, Power supply voltage: 5 VDC ± 0.25V
