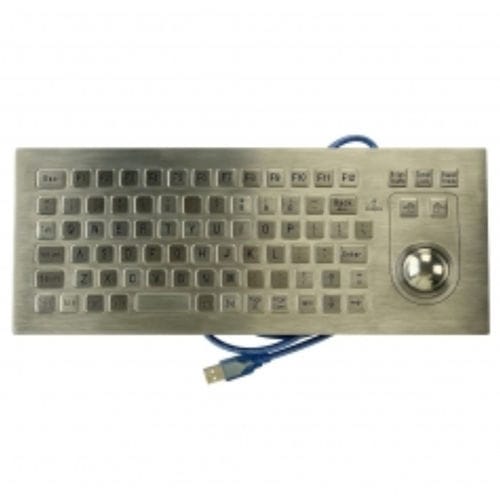

Panel-mount keyboard CK-KB350145-38TB

with mechanical keyswith trackballfor mining applications

IP67 rated waterproof and vandal resistant brushed 316L stainless steel industrial keyboard with integrated 38.0mm laser trackball, this is a IK10 rated and fully-rugged panel-mounted keyboard for mining environment or marine console or industrial console. It is specially designed to meet IP67 specifications and it is anti-corrosion 316L stainless steel which covered the shortage of normal 304 stainless steel for corrosion spray or salt mist environment, which means it is resistant to harsh environment with salt mist, corrosion spray, dirt, dust, water, ice, low temperature, chemical liquids, corrosives, disinfectants, oil, etc. - Mining: Industrial console - 350.0mm x 145.0mm (front Panel) - RoHS, CE and FCC 12 months Operating Temperature: -20 °C to +60 °C Storage Temperature: -30°C to +70°C Waterproof rate: IP67 Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 Electronics: Industrial level Humidity Resistant: 100% Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 Actuation Force: 2.0 N+/-0.1N Key Travel: 0.5 mm Key switch Lifetime: 5 mil. Operations Lifetime of trackball mouse: more than 10 mil. operations Lifespan: > 3 years MTBF: >50000H MTTR: <30min G.W.: appr. 2.0 KGs Supply Voltage: +5V DC +/- 5% Current Rating: appr. 80mA EMC Emission: EN55022(B) Saline mist: 96 hours, IEC 60512-6 Damp heat test: at + 40º C: 21 days, IEC 60512-6 Dry heat test: at + 85º C: 10 days, IEC 60512-6 OS: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android Trackball mouse: 38.0mm laser trackball with +1200DPI resolution with more than 10 million cycle lifetime
