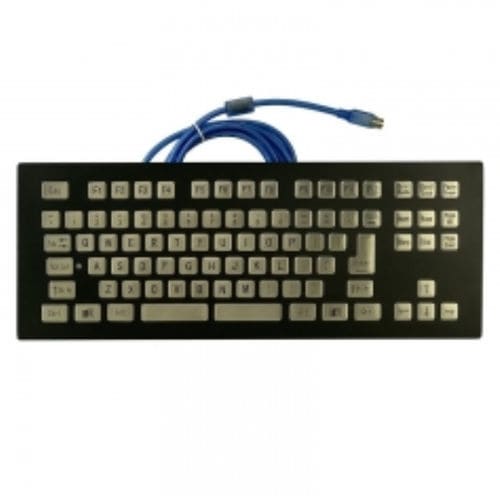

Panel-mount keyboard CK-KB385145-BK

with mechanical keysindustrialfor mining applications

IP67 rated waterproof and vandal resistant brushed 316L stainless steel industrial keyboard, this is a IK10 rated and fully-rugged mobile panel mounted keyboard for mining environment or marine console or industrial console. It is specially designed to meet IP67 specifications with black electroplated surface treatment and it is anti-corrosion 316L stainless steel which covered the shortage of normal 304 stainless steel for corrosion spray or salt mist environment, which means it is resistant to harsh environment with salt mist, corrosion spray, dirt, dust, water, ice, low temperature, chemical liquids, corrosives, disinfectants, oil, etc. - Stainless steel front mounting panel - One piece complete waterproof silicone rubber inside - Laser engraving letters - Metal dome key switches Dimensions: 385.0mm x 145.0mm (front panel). RoHS, CE and FCC 12 months - Operating Temperature: -20 °C to +60 °C - Storage Temperature: -30°C to +70°C - Waterproof rate: IP67 - Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 - Electronics: Industrial level - Humidity Resistant: 100% - Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 - Actuation Force: 2.0 N+/-0.1N - Key Travel: 0.5 mm - Key switch Lifetime: 5 million operations - Lifespan: > 3 years - MTBF: >50000H - MTTR: <30min - G.W.: approx. 2.0 KGs - Supply Voltage: +5V DC +/- 5% - Current Rating: approx. 30 mA - EMC Emission: EN55022(B) - Saline mist: 96 hours, IEC 60512-6 - Damp heat test: at + 40º C: 21 days, IEC 60512-6 - Dry heat test: at + 85º C: 10 days, IEC 60512-6 - OS: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android
