Plug valve PAV series
pneumatically-operatedpilotfor water

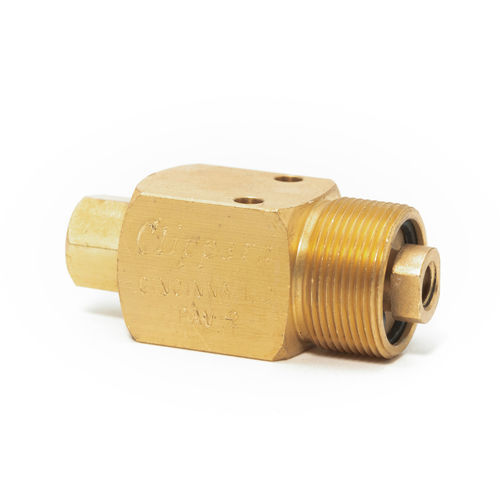

Plug valve - PAV series - Clippard - pneumatically-operated / pilot / for water
Plug valve - PAV series - Clippard - pneumatically-operated / pilot / for water
Add to favorites
Compare this product
Go to the Clippard website for more information

Characteristics

Type
plug
Operation
pneumatically-operated
Function
pilot
Media
for water, for oil, for air
Body
miniature
Material
brass
Number of channels
3-way, 2-way
Other characteristics
compact, normally closed, normally open
Pressure

Min.: 0 psi

Max.: 300 psi

Flow rate

113 l/min, 190 l/min
(29.85 us gal/min, 50.19 us gal/min)

Description

These Normally-Open or Normally-Closed 2-way and 3-way valves incorporate an integral pilot actuator that provides a compact assembly and simple installation. The internal valving is identical to the MAV- 2/3 or MAVO-2/3. Medium: Air, Water or Oil Input Pressure: PAV-2/3: 300 psig; PAVO-2/3:150 psig max. Air Pilot Pressure: 15 psig min. Air Flow: PAV-2/3: 4.0 scfm @ 50 psig; 6.8 scfm @ 100 psig; PAVO-2/3: 6.8 scfm @ 50 psig; 11.6 scfm @ 100 psig Mounting: 5/8-32 thread or #4 screw. Nut and lockwasher may be ordered separately. Part Number: PAV-MH Materials: Brass body, Nitrile seals, stainless steel stem and spring Foot Bracket: FB-1791

Catalogs

Go to the Clippard website for more information

Other Clippard products

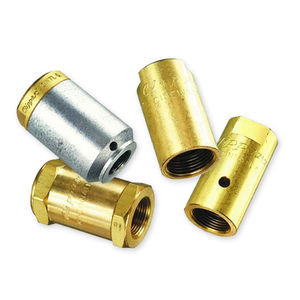

Air Pilot Valves
