Manual valve FTVtogglepilotpanel
Add to favorites
Compare this product
Characteristics
- Operation
- manual, toggle
- Function
- pilot
- Applications
- panel
- Number of channels
- 3-way
- Associated function
- outlet, exhaust
- Other characteristics
- compact
- Temperature
Max.: 110 °C
(230 °F)Min.: 0 °C
(32 °F)
Description

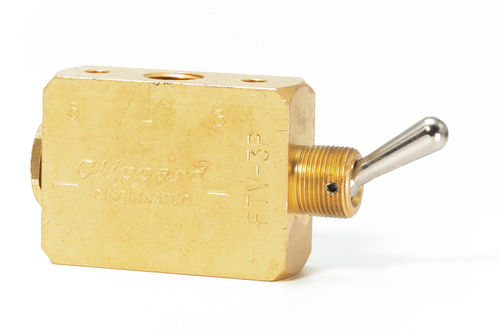

3-Way, 2 Position FTV valves have a supply, outlet and exhaust port. When the toggle is in the "on" position air flows from the inlet to the outlet and the exhaust port is blocked. Moving the toggle to the "off" position closes the inlet and opens the outlet to an exhaust port which vents the outlet to atmosphere. 3-Way toggle valves may have a poppet or spool and by movement of the toggle may either be 2-position or have a momentary actuation.
Features and Benefits
Compact design, lightweight
Will accept a variety of manual, air pilot, electrical or mechanical actuators
#10-32 & 1/8" NPT
15/32-32 thread for panel mounting
