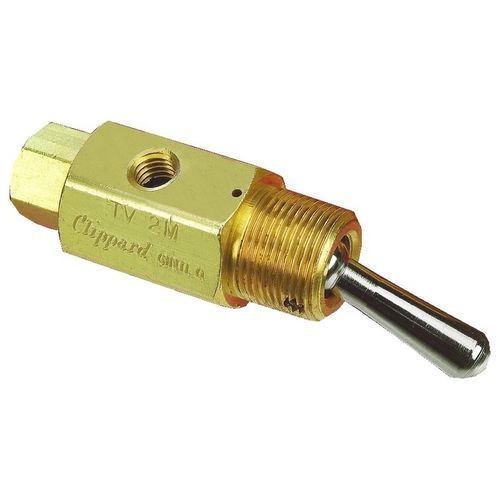

Toggle valve TVplugfor waterfor oil
Add to favorites
Compare this product
Characteristics
- Type
- plug
- Operation
- toggle
- Media
- for water, for oil, for air
- Material
- brass
- Number of channels
- 3-way, 2-way, 4-way
- Pressure
10 bar
(145 psi)- Temperature
Min.: 32 °F
(0 °C)Max.: 230 °F
(110 °C)- Flow rate
95 l/min, 160 l/min
(25.1 us gal/min, 42.27 us gal/min)
Description
The function of a 2-Way valve is to turn an air supply on and off. In the "on" position, medium flows from the inlet to the outlet, and in the "off" position, the flow is blocked. 3-Way styles have an exhaust port which vents the outlet to the atmosphere. Available with #10-32 and 1/8" NPT ports.
Features and Benefits
Miniature #10-32 or 1/8" NPT Threaded Ports
2-Way, 3-Way, 4-Way 2-Position Spool & Poppet Valves
Normally-Open or Normally-Closed
Brass Body, Nitrile Seals, Stainless Steel Stem & Spring
Steel or Plastic Toggles
Medium: Air, Water or Oil
