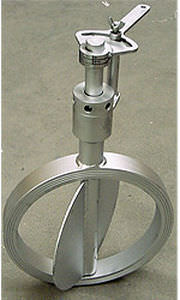

Butterfly valve ML seriespneumatically-operatedflangeexhaust
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- pneumatically-operated
- Body
- flange
- Associated function
- exhaust
- Other characteristics
- for exhaust gas
- DN
Max.: 3,000 mm
(118.11 in)Min.: 80 mm
(3.15 in)
Description
Flanged or wafer butterfly damper valve. Cast or welded body and disc depending the diameter of the valve. This tye of valve is manufactured with a tightness of 97%. Fabrication materials: S275JR carbon steel, HII carbon steel, 16MO3 carbon steel, different stainless steel qualities (aisi 304, 316, 310 ...).
Depending the application.
USE
Pneumatic transports, exahust gas control on chimineis, exhaust gas control on combustion proccesses, gas turbina exhaust gas control ...
Actuators: Manual, pneumatic, electric ... Working pressure: According to the standard manufacturing way these valves are designed to resist 0,5 kg/cm2 at ambient temperature.
