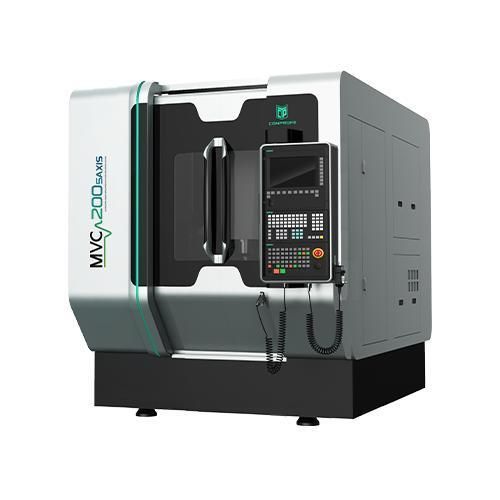

5-axis CNC machining center MVC200

verticalfor glassfor ceramics

Product Overview

• Gantry-frame structure combining high stability with lightweight moving components to improve machining accuracy and dynamic performance
• Thermally symmetrical design developed via finite element analysis (FEM) to minimize thermal deformation and preserve long-term precision
• Cast-iron construction with strong vibration damping for stable dynamic cutting performance and broad applicability
• Bed structure optimized by FEM to maximize rigidity
• Cooled Z-axis motor; cooled A-axis and C-axis motors for consistent thermal behavior

Product Highlights

• High-speed, high-precision A/C-axis DDR motors
• A/C-axis positioning accuracy: 8''; repeatability: 4''
• High-rigidity, reliable A/C-axis clamping/unclamping mechanism
• Three direct-drive motors available for models with larger spindles (650 or above products)
• Imported high-precision linear encoders for A/C-axis scale feedback
• Spacious rotary table area for diverse machining setups
• Multiple tool magazine configurations; optional chain-type magazines (24/40/64/120 tools)
• High tool load capacity and compatibility with common cutting tools
• Ultrasonic machining option: high-frequency ultrasonic vibration (15–70 kHz) applied to the tooltip to reduce microcracking, lower cutting forces, improve efficiency, extend tool life and enhance surface finish

Application Cases
Suitable for high-precision, high-efficiency machining of hard-brittle materials (ceramics, glass, quartz), superalloys (titanium alloys) and other hard-to-cut workpieces where improved surface quality and reduced tool wear are required

Technical Parameters (table)
Item: MVC200-5AXIS
X/Y/Z-Axis Travel: 280*280*280 mm
Worktable Dimension: Φ200 mm
Max. Load of Worktable: 50 kg
Ultrasonic Spindle: Standard
Spindle Diameter: Φ100 mm
Max. Spindle Speed (Short-Duration): 36,000 rpm
Max. Spindle Speed (Long-Duration): 28,000 rpm
Motor Power: 6 kW
X/Y/Z-Axis Rapid Speed: 36/36/36 m/min
A/C-Axis Rapid Speed: 100/400 rpm
X/Y/Z-Axis Positioning Accuracy: 0.007 mm
X/Y/Z-Axis Repeatability: 0.004 mm
A/C-Axis Positioning Accuracy: 8 ''
A/C-Axis Repeatability: 4 ''
Tool Magazine Type: Chain Type
Tool Holding Capacity: 40 (No. of Tools)
Total Weight (incl. Accessories): 4,000 kg
Machine Size (LxWxH): 1,732 x 3,147 x 2,195 mm
CNC Controller: SIEMENS One (HEIDENHAIN Optional)

Technical Specifications

• Model: MVC200-5AXIS
• X/Y/Z-Axis Travel: 280*280*280 mm
• Worktable Dimension: Φ200 mm
• Max. Load of Worktable: 50 kg
• Spindle Diameter: Φ100 mm
• Max. Spindle Speed: 36,000 rpm (short); 28,000 rpm (continuous)
• Motor Power: 6 kW
• X/Y/Z Rapid Speed: 36 m/min; A/C Rapid Speed: 100/400 rpm
• X/Y/Z Positioning Accuracy: 0.007 mm; Repeatability: 0.004 mm
• A/C Positioning Accuracy: 8''; Repeatability: 4''
• Tool Magazine: Chain Type; Capacity: 40 tools
• Total Weight (incl. Accessories): 4,000 kg
• Machine Size: 1,732 x 3,147 x 2,195 mm
• CNC Controller: SIEMENS One (HEIDENHAIN Optional)
