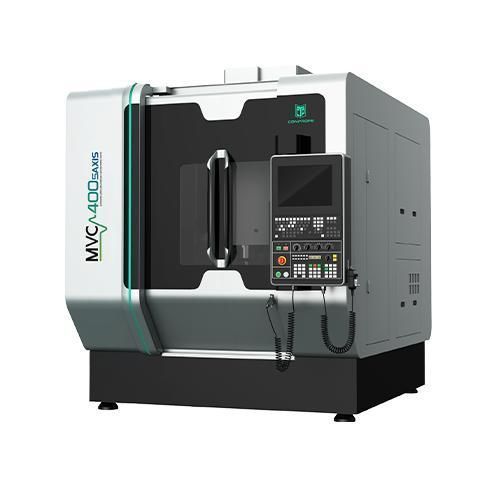

5-axis CNC machining center MVC400

verticalfor glassfor ceramics

Overview

• Gantry frame structure with high stability and lightweight moving components to improve dynamic performance and machining accuracy
• Thermally symmetrical design developed by finite element analysis (FEM) to minimize thermal deformation and maintain long-term precision
• Cast iron machine elements for superior vibration damping, dynamic cutting performance and stability
• Bed and structure optimized by FEM for increased rigidity
• Cooled Z-axis motor; cooled A-axis and C-axis motors

Product Highlights

• A/C-axis high-speed, high-precision DDR motors; A/C-axis positioning accuracy 8'' and repeatability 4''; high-rigidity clamping/unclamping design; 3 direct-drive motors on models 650 and above
• Imported high-precision linear encoders for A/C-axis scale division and ample machining space on the rotary table
• Multiple tool magazine configurations (chain type: 24/40/64/120T optional); high tool load capacity; compatible with a wide range of cutting tools
• Ultrasonic machining capability (15–70 kHz) that: 1) mitigates microcracking; 2) reduces cutting forces and increases efficiency; 3) extends tool life; 4) minimizes burrs; 5) improves surface finish

Application Cases
Suitable for high-precision, high-efficiency machining of hard-brittle materials (ceramics, glass, quartz), superalloys (titanium alloys) and other hard-to-cut materials where minimal subsurface damage and fine surface quality are required

Technical Parameters
Item : MVC400-5AXIS : Unit
X/Y/Z-Axis Travel : 420*420*380 : mm
Worktable Dimension : Φ400 : mm
Max. Load of Worktable : 200 : kg
Ultrasonic Spindle : Standard : /
Spindle Diameter : Φ155 : mm
Max. Spindle Speed (Short-Duration) : 24,000 : rpm
Max. Spindle Speed (Long-Duration) : 16,000 : rpm
Motor Power : 22 : kW
X/Y/Z-Axis Rapid Speed : 36/36/36 : m/min
A/C-Axis Rapid Speed : 100/150 : rpm
X/Y/Z-Axis Positioning Accuracy : 0.007 : mm
X/Y/Z-Axis Repeatability : 0.004 : mm
A/C-Axis Positioning Accuracy : 8 : ''
A/C-Axis Repeatability : 4 : ''
Tool Magazine Type : Chain Type : /
Tool Holding Capacity : 40 : No. of Tools
Total Weight (incl. Accessories) : 7,000 : kg
Machine Size (LxWxH) : 2,000x3,310x2,420 : mm
CNC Controller : SIEMENS One (HEIDENHAIN Optional) : /

Specifications

• Model: MVC400-5AXIS
• X/Y/Z Travel: 420×420×380 mm
• Worktable: Φ400 mm
• Max. Worktable Load: 200 kg
• Spindle: Ultrasonic spindle standard, diameter Φ155 mm, max speed 24,000 rpm (short), 16,000 rpm (continuous)
• Motor Power: 22 kW
• Rapid Speeds: X/Y/Z 36 m/min; A/C 100/150 rpm
• Positioning Accuracy: X/Y/Z 0.007 mm; A/C 8''
• Repeatability: X/Y/Z 0.004 mm; A/C 4''
• Tool Magazine: Chain type, 40 tools (options: 24/40/64/120T)
• Total Weight: 7,000 kg
• Machine Size: 2,000×3,310×2,420 mm
• CNC Controller: SIEMENS One (HEIDENHAIN Optional)
