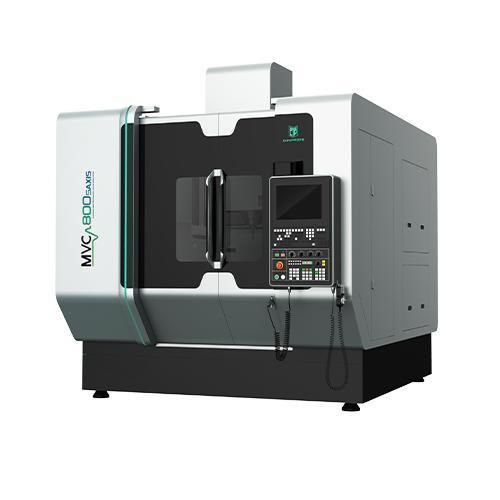

5-axis CNC machining center MVC800

verticalfor glassfor ceramics

Overview

• Gantry frame structure with exceptional stability and lightweight moving components, ensuring enhanced accuracy and improved dynamic performance of the machine tool
• Thermally symmetrical structure designed using finite element analysis (FEM) effectively minimizing thermal deformation impacts while ensuring the high rigidity required for sustained long-term precision
• Employing cast iron with excellent vibration-damping properties, which features outstanding dynamic cutting performance, stability, reliability, and strong applicability
• Continuous enhancement of bed structure rigidity through FEM to achieve the optimal design
• Cooled Z-axis motor
• Cooled A-axis motor and C-axis motor

Product Highlights

• A/C-axis high-speed and high-precision DDR motor
• A/C-axis positioning accuracy of 6'' and repeatability of 4''
• A/C-axis high-rigidity and reliable clamping & unclamping design
• 3 direct drive motors for 650 or above products
• Imported high-precision linear encoders for A/C-axis scale division
• Ample spaces for machining on rotary table
• Various tool magazine configurations with extra options
• Chain type tool magazine (24/40/64/120T optional)
• High load of cutting tools
• Widely used cutting tools
• Unique Advantages of Ultrasonic Machining - High Frequency Ultrasonic Vibration Acted on Tooltip (15-70kHz): 1. Mitigates microcracking; 2. Reduces cutting force and improves machining efficiency; 3. Increases tool life; 4. Minimizes burring of the workpiece; 5. Enhances surface quality

Application Cases
Suitable for high-precision and high-efficiency machining of hard-brittle materials (ceramics, glass, quartz, etc.), superalloys (titanium alloy, etc.) and other hard-to-cut materials

Technical Parameters
Item | MVC800-5AXIS | Unit
X/Y/Z-Axis Travel | 800*1000*550 | mm
Worktable Dimension | Φ800 | mm
Max. Load of Worktable | 900 | kg
Ultrasonic Spindle | Standard | /
Spindle Diameter | Φ190 | mm
Max. Spindle Speed (Short-Duration) | 20,000 | rpm
Max. Spindle Speed (Long-Duration) | 14,000 | rpm
Motor Power | 35 | kW
X/Y/Z-Axis Rapid Speed | 36/36/30 | m/min
A/C-Axis Rapid Speed | 30/70 | rpm
X/Y/Z-Axis Positioning Accuracy | 0.008 | mm
X/Y/Z-Axis Repeatability | 0.005 | mm
A/C-Axis Positioning Accuracy | 8 | ''
A/C-Axis Repeatability | 5 | ''
Tool Magazine Type | Chain Type | /
Tool Holding Capacity | 40 | No. of Tools
Total Weight (incl. Accessories) | 17,000 | kg
Machine Size (LxWxH) | 2,940x4,310x3,310 | mm
CNC Controller | SIEMENS One (HEIDENHAIN Optional) | /

Caractéristiques / spécifications techniques

• X/Y/Z-Axis Travel: 800*1000*550 mm
• Worktable Dimension: Φ800 mm
• Max. Load of Worktable: 900 kg
• Ultrasonic Spindle: Standard
• Spindle Diameter: Φ190 mm
• Max. Spindle Speed (Short-Duration): 20,000 rpm
• Max. Spindle Speed (Long-Duration): 14,000 rpm
• Motor Power: 35 kW
• X/Y/Z-Axis Rapid Speed: 36/36/30 m/min
• A/C-Axis Rapid Speed: 30/70 rpm
• X/Y/Z-Axis Positioning Accuracy: 0.008 mm
• X/Y/Z-Axis Repeatability: 0.005 mm
• A/C-Axis Positioning Accuracy: 8''
• A/C-Axis Repeatability: 5''
• Tool Magazine Type: Chain Type (options: 24/40/64/120T)
• Tool Holding Capacity: 40 tools
• Total Weight (incl. Accessories): 17,000 kg
• Machine Size (LxWxH): 2,940 x 4,310 x 3,310 mm
• CNC Controller: SIEMENS One (HEIDENHAIN Optional)
