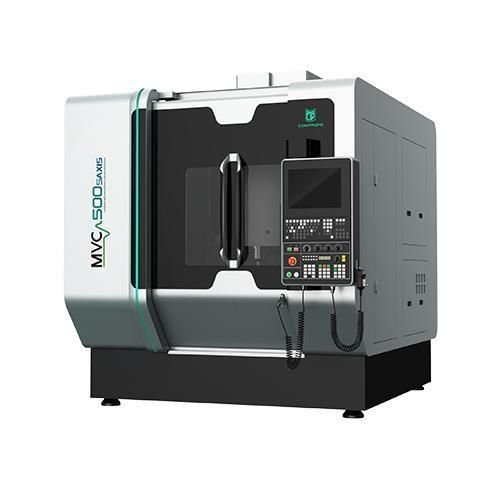

5-axis CNC machining center MVC500verticalfor glassfor ceramics
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Machined material
- for aluminum alloys, for ceramics, for glass, for quartz
- Structure
- gantry
- Number of tool stations
- 40 tools
- Associated functions
- cutting
- Other characteristics
- high-speed, high-performance, direct-drive, high-precision, high-rigidity
- X travel
500 mm
(19.69 in)- Y travel
550 mm
(21.65 in)- Z travel
500 mm
(19.69 in)- Rotational speed
14,000 rpm, 20,000 rpm
(87,965 rad.min-1, 125,664 rad.min-1)- Power
35 kW
(47.59 hp)- Work feed X-axis
36 m/min
- Work feed Y-axis
36 m/min
- Work feed Z-axis
30 m/min
- Table load capacity
300 kg
(661 lb)- Positioning accuracy
0.007 mm
(0.00028 in)- Repeatability
0.004 mm
(0.00016 in)- Weight
10,000 kg
(22,046.23 lb)- Overall length
2,240 mm
(88.2 in)- Overall width
3,780 mm
(148.8 in)- Overall height
2,855 mm
(112.4 in)
Description
Product Overview
Product Highlights
Application Cases
Suitable for high-precision and high-efficiency machining of hard-brittle materials (ceramics, glass, quartz, etc.), superalloys (titanium alloy, etc.) and other hard-to-cut materials
Technical Parameters
Specifications
- Gantry frame structure with exceptional stability and lightweight moving components, ensuring enhanced accuracy and improved dynamic performance of the machine tool
- Thermally symmetrical structure designed using finite element analysis (FEM) effectively minimizing thermal deformation impacts while ensuring the high rigidity required for sustained long-term precision
- Employing cast iron with excellent vibration-damping properties, which features outstanding dynamic cutting performance, stability, reliability, and strong applicability
- Continuous enhancement of bed structure rigidity through FEM to achieve the optimal design
- Cooled Z-axis motor
- Cooled A-axis motor and C-axis motor
Product Highlights
- A/C-axis high-speed and high-precision DDR motor
- A/C-axis positioning accuracy of 6'' and repeatability of 4''
- A/C-axis high-rigidity and reliable clamping & unclamping design
- 3 direct drive motors for 650 or above products
- Imported high-precision linear encoders for A/C-axis scale division
- Ample spaces for machining on rotary table
- Various tool magazine configurations with extra options
- Chain type tool magazine (24/40/64/120T optional)
- High load of cutting tools
- Widely used cutting tools
- Unique advantages of Ultrasonic Machining - High Frequency Ultrasonic Vibration acted on tooltip (15-70kHz): mitigates microcracking; reduces cutting force and improves machining efficiency; increases tool life; minimizes burring of the workpiece; enhances surface quality
Application Cases
Suitable for high-precision and high-efficiency machining of hard-brittle materials (ceramics, glass, quartz, etc.), superalloys (titanium alloy, etc.) and other hard-to-cut materials
Technical Parameters
- Item - MVC500-5AXIS - Unit
- X/Y/Z-Axis Travel - 500*550*500 - mm
- Worktable Dimension - Φ500 - mm
- Max. Load of Worktable - 300 - kg
- Ultrasonic Spindle - Standard - /
- Spindle Diameter - Φ190 - mm
- Max. Spindle Speed (Short-Duration) - 20,000 - rpm
- Max. Spindle Speed (Long-Duration) - 14,000 - rpm
- Motor Power - 35 - kW
- X/Y/Z-Axis Rapid Speed - 36/36/30 - m/min
- A/C-Axis Rapid Speed - 50/100 - rpm
- X/Y/Z-Axis Positioning Accuracy - 0.007 - mm
- X/Y/Z-Axis Repeatability - 0.004 - mm
- A/C-Axis Positioning Accuracy - 8 - ''
- A/C-Axis Repeatability - 5 - ''
- Tool Magazine Type - Chain Type - /
- Tool Holding Capacity - 40 - No. of Tools
- Total Weight (incl. Accessories) - 10,000 - kg
- Machine Size (LxWxH) - 2,240x3,780x2,855 - mm
- CNC Controller - SIEMENS One (HEIDENHAIN Optional) - /
Specifications
- Model: MVC500-5AXIS
- Structure: Gantry frame, thermally symmetrical design (FEM optimized)
- Materials: Cast iron structure for vibration damping and stability
- X/Y/Z Travel: 500 x 550 x 500 mm
- Worktable: Diameter Φ500 mm, max load 300 kg
- Spindle: Ultrasonic spindle standard, spindle diameter Φ190 mm
- Spindle Speed: Up to 20,000 rpm short-duration; 14,000 rpm long-duration
- Motor Power: 35 kW
- Rapid Traverse: X/Y/Z 36/36/30 m/min; A/C axes 50/100 rpm
- Positioning Accuracy: X/Y/Z 0.007 mm; A/C 8''
- Repeatability: X/Y/Z 0.004 mm; A/C 5''
- Tool Magazine: Chain type, 40 tools (other capacities/options available)
- Total Weight (incl. accessories): 10,000 kg
- Machine Dimensions (LxWxH): 2,240 x 3,780 x 2,855 mm
- CNC Controller: SIEMENS One standard; HEIDENHAIN optional
- Additional features: Cooled Z-, A- and C-axis motors; direct drive A/C motors on larger models; imported high-precision linear encoders for A/C-axis
