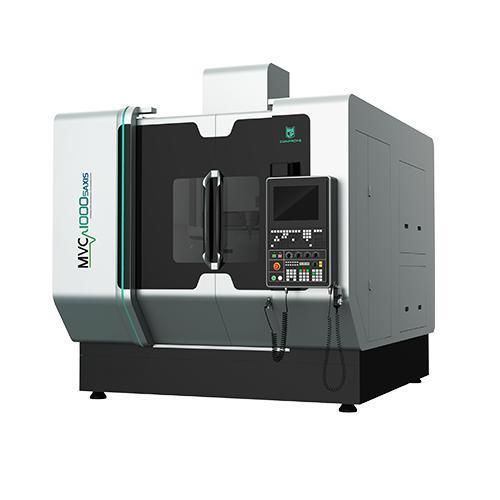

5-axis CNC machining center MVC1000

verticalfor glassfor ceramics

Product Overview

• Gantry frame with lightweight moving components for high dynamic performance and machining accuracy
• Thermally symmetrical structure designed via FEM to minimize thermal deformation during long production runs
• Cast-iron construction for vibration damping, stability and broad applicability
• Optimised bed rigidity through finite element analysis
• Cooled motors on Z, A and C axes

Key Features

• High-speed, high-precision DDR motors on A/C axes
• A/C-axis positioning accuracy: 6''; repeatability: 4''
• High-rigidity clamping/unclamping mechanism for A/C axes
• Three direct-drive motors available for models with 650 mm or larger spindles
• Imported high-precision linear encoders for A/C axis feedback
• Large machining envelope on rotary table
• Multiple tool magazine configurations; chain-type magazine optional (24/40/64/120T)
• High tool load capacity and compatibility with standard cutting tools
• Ultrasonic machining option: tooltip vibration 15–70 kHz to reduce microcracking, lower cutting forces, extend tool life and improve surface finish

Application Cases

Suitable for high-precision, high-efficiency machining of hard-brittle materials (ceramics, glass, quartz), superalloys (titanium alloys) and other difficult-to-cut materials where surface integrity and tight tolerances are required

Technical Parameters

Item — MVC1000-5AXIS — Unit
X/Y/Z-Axis Travel — 1250×1250×1000 — mm
Worktable Dimension — Φ1000 — mm
Max. Load of Worktable — 1,000 — kg
Ultrasonic Spindle — Standard — /
Spindle Diameter — Φ210 — mm
Max. Spindle Speed (Short-Duration) — 15,000 — rpm
Max. Spindle Speed (Long-Duration) — 12,000 — rpm
Motor Power — 35 — kW
X/Y/Z-Axis Rapid Speed — 30/30/30 — m/min
A/C-Axis Rapid Speed — 30/60 — rpm
X/Y/Z-Axis Positioning Accuracy — 0.008 — mm
X/Y/Z-Axis Repeatability — 0.005 — mm
A/C-Axis Positioning Accuracy — 15 — ''
A/C-Axis Repeatability — 8 — ''
Tool Magazine Type — Chain Type — /
Tool Holding Capacity — 40 — No. of Tools
Total Weight (incl. Accessories) — 25,000 — kg
Machine Size (LxWxH) — 3,480×5,900×4,250 — mm
CNC Controller — SIEMENS One (HEIDENHAIN Optional) — /

Technical Specifications

• Model: MVC1000-5AXIS
• X/Y/Z travel: 1250 × 1250 × 1000 mm
• Worktable: Φ1000 mm, max load 1,000 kg
• Spindle: Φ210 mm; ultrasonic spindle standard
• Spindle speed: up to 15,000 rpm (short), 12,000 rpm (continuous)
• Motor power: 35 kW
• Rapid speeds: X/Y/Z 30 m/min; A/C axes 30/60 rpm
• Positioning accuracy: X/Y/Z 0.008 mm; A/C 15''
• Repeatability: X/Y/Z 0.005 mm; A/C 8''
• Tool magazine: chain type, typical 40 tools (other options available)
• Total weight (incl. accessories): 25,000 kg
• Footprint (L×W×H): 3,480 × 5,900 × 4,250 mm
• CNC controller options: SIEMENS One (HEIDENHAIN optional)
