5-axis CNC machining center MVC1250
verticalfor glassfor ceramics

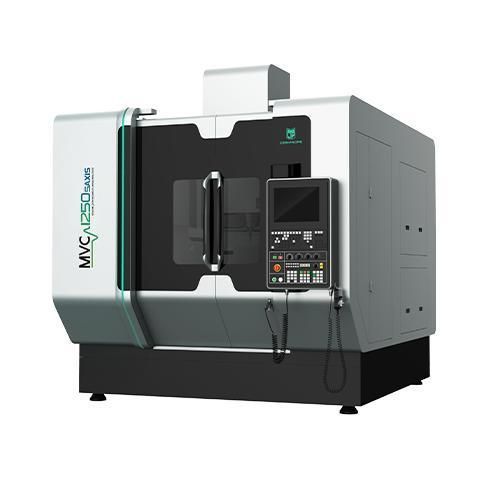

5-axis CNC machining center - MVC1250 - Conprofe - vertical / for glass / for ceramics
5-axis CNC machining center - MVC1250 - Conprofe - vertical / for glass / for ceramics
Add to favorites
Compare this product

Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Machined material
for titanium alloys, for ceramics, for glass, for quartz
Number of tool stations
40 tools, 64 tools
Associated functions
cutting
Other characteristics
high-speed, high-performance, direct-drive, high-precision, high-rigidity, ultrasonic
X travel

1,250 mm
(49.21 in)

Y travel

1,250 mm
(49.21 in)

Z travel

1,000 mm
(39.37 in)

Rotational speed

12,000 rpm, 15,000 rpm
(75,398 rad.min-1, 94,248 rad.min-1)

Power

35 kW
(47.59 hp)

Work feed X-axis

30 m/min

Work feed Y-axis

30 m/min

Work feed Z-axis

30 m/min

Table load capacity

1,200 kg
(2,646 lb)

Positioning accuracy

0.008 mm
(0.00031 in)

Repeatability

0.005 mm
(0.0002 in)

Weight

26,000 kg
(57,320.19 lb)

Overall length

3,480 mm
(137 in)

Overall width

5,900 mm
(232.3 in)

Overall height

4,250 mm
(167.3 in)

Description

Product Overview
  • Gantry frame with high structural stability and lightweight moving components to improve machining accuracy and dynamic response
  • Thermally symmetrical design validated by FEM to reduce thermal deformation and maintain long-term precision
  • Cast-iron components with high vibration damping for reliable dynamic cutting performance
  • Bed structure optimized by FEM to increase rigidity
  • Cooled Z-, A- and C-axis motors for thermal stability under heavy use


Product Highlights
  • A/C-axis high-speed, high-precision DDR motors
  • A/C-axis positioning accuracy: 15''; repeatability: 8''
  • High-rigidity A/C-axis clamping and unclamping mechanism
  • Three direct-drive motors available on selected configurations
  • Imported high-precision linear encoders for A/C-axis scale feedback
  • Generous machining area on the rotary table
  • Multiple tool magazine configurations; chain-type magazine optional (24/40/64/120T)
  • Tool holding capacity: 40 tools (configurable)
  • Compatibility with widely used cutting tools
  • Ultrasonic machining (15–70 kHz) advantages:
    • Reduces microcracking on brittle materials
    • Lowers cutting forces and improves cutting efficiency
    • Extends tool life
    • Minimizes burr formation
    • Improves surface finish


Application Cases
Suitable for high-precision, high-efficiency machining of hard-brittle materials (ceramics, glass, quartz), superalloys (including titanium alloys) and other hard-to-cut materials where ultrasonic-assisted machining and 5-axis capability are required

Technical Parameters
  • Model: MVC1250-5AXIS
  • X/Y/Z-Axis Travel: 1,250×1,250×1,000 mm
  • Worktable Dimension: Φ1,200 mm
  • Max. Load of Worktable: 1,200 kg
  • Ultrasonic Spindle: Standard
  • Spindle Diameter: Φ210 mm
  • Max. Spindle Speed (Short-Duration): 15,000 rpm
  • Max. Spindle Speed (Long-Duration): 12,000 rpm
  • Motor Power: 35 kW
  • X/Y/Z-Axis Rapid Speed: 30/30/30 m/min
  • A/C-Axis Rapid Speed: 30/60 rpm
  • X/Y/Z-Axis Positioning Accuracy: 0.008 mm
  • X/Y/Z-Axis Repeatability: 0.005 mm
  • A/C-Axis Positioning Accuracy: 15 ''
  • A/C-Axis Repeatability: 8 ''
  • Tool Magazine Type: Chain type (24/40/64/120T optional)
  • Tool Holding Capacity: 40 tools
  • Total Weight (incl. Accessories): 26,000 kg
  • Machine Size (L×W×H): 3,480×5,900×4,250 mm
  • CNC Controller: SIEMENS One (HEIDENHAIN optional)


Specifications
  • X/Y/Z-Axis Travel: 1,250×1,250×1,000 mm
  • Worktable Dimension: Φ1,200 mm
  • Max. Load of Worktable: 1,200 kg
  • Ultrasonic Spindle: Standard
  • Spindle Diameter: Φ210 mm
  • Max. Spindle Speed (Short/Long): 15,000 / 12,000 rpm
  • Motor Power: 35 kW
  • Rapid Speed (X/Y/Z): 30/30/30 m/min
  • Rapid Speed (A/C): 30/60 rpm
  • Positioning Accuracy (X/Y/Z): 0.008 mm
  • Repeatability (X/Y/Z): 0.005 mm
  • Positioning Accuracy (A/C): 15 ''
  • Repeatability (A/C): 8 ''
  • Tool Magazine: Chain type (24/40/64/120T optional)
  • Tool Capacity: 40
  • Total Weight: 26,000 kg
  • Machine Dimensions: 3,480×5,900×4,250 mm
  • CNC Controller: SIEMENS One (HEIDENHAIN optional)
