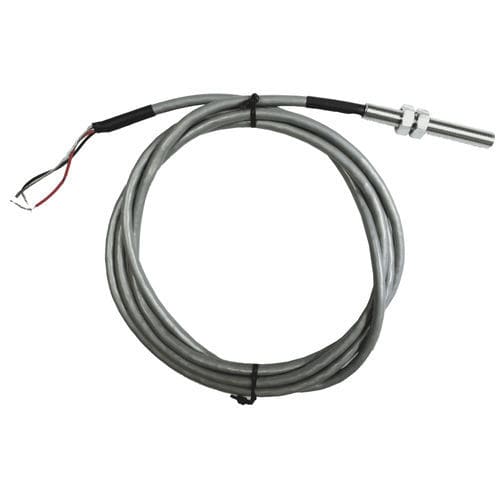

Rotational speed sensor CO 3/8-60W

magneticpick-up

Magnetic pick-up with SAE thread (3/8-24 UNF), Length 60mm The magnetic pick-up (MPU) is the communication link between the engine and the electronic controller. The MPU is installed next to the drive shaft gear made of a material that reacts to a magnetic field. As the fly-wheel rotates it interrupts the MPU’s magnetic field and produces an AC signal corresponding to the engine speed. Features: • Magnetic pick-up 3/8″ 24 UNF • Insert lenght 60mm • Shielded cable output 2 meters • 2 nuts (supplied)
