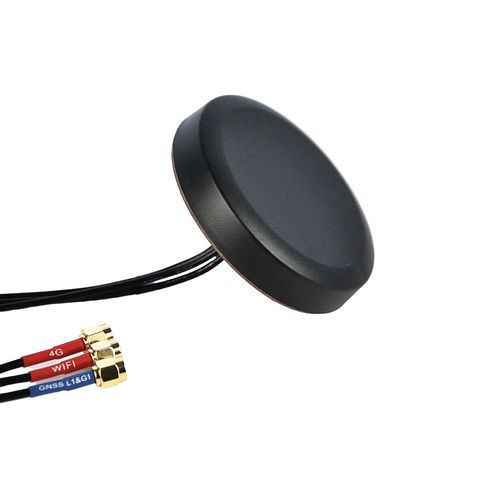

WiFi antenna A58W4

GNSS4G LTEexternal

Product overview
Compact, IP67-rated 3-in-1 antenna integrating a 4G LTE element, a Wi‑Fi element and a GNSS L1 element. Engineered for wide frequency coverage and high isolation between elements to ensure stable cellular, Wi‑Fi and GNSS performance in industrial and outdoor installations. Low-profile housing and multiple mounting options for discreet, durable integration. Dedicated accessory for the I4Gen Box.

Features

• 3-in-1 configuration: 4G LTE, Wi‑Fi and GNSS L1.
• Wide frequency coverage for multi-band operation.
• Extended cellular support: 2G, 3G, LTE‑M and NB‑IoT.
• Dual mounting: adhesive or screw mounting.
• SMA and RP‑SMA male connectors supplied; cable length 300 mm.
• Optimized signal efficiency (up to 62.6% for Wi‑Fi, 54.09% for GNSS).
• GNSS LNA included (gain 18 ±3 dB) to improve satellite sensitivity.
• Strong isolation between antenna elements to minimize mutual interference.
• IP67 enclosure for water and dust protection.
• Compact, low-profile form factor (Ø81 × 15.5 mm) for discreet integration.

Intended uses

• Industrial and outdoor installations requiring combined cellular, Wi‑Fi and GNSS connectivity.
• Accessory designed for remote monitoring and geolocation modules such as the I4Gen Box.

Technical specifications

• Model: A58W4
• 4G frequency bands: 698–960 MHz and 1710–2690 MHz
• Wi‑Fi frequency: 2400 MHz
• GNSS frequency (L1): 1565–1606 MHz
• Extended compatibility: 2G, 3G, LTE‑M, NB‑IoT
• GNSS LNA gain: 18 ±3 dB
• Signal efficiency: up to 62.6% (Wi‑Fi), 54.09% (GNSS)
• Connectors: SMA and RP‑SMA male
• Cable length: 300 mm (for antenna connectors)
• Isolation: strong isolation between antenna elements
• Ingress protection: IP67
• Dimensions: Ø81 mm × thickness 15.5 mm
