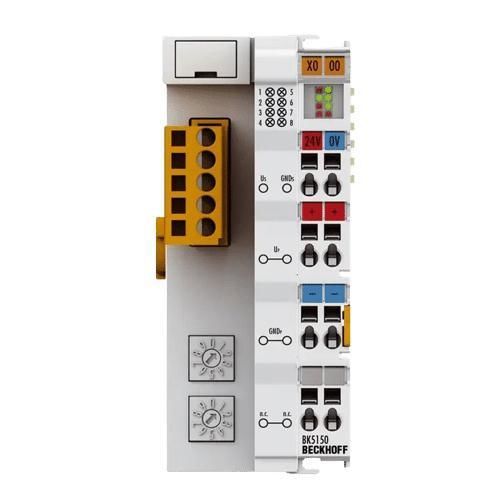

DIN rail-mounted terminal block BK5150

I/O modulecompact

Product description
The Bus Coupler BK5150 for the COMPACT controllers CANopen extends the Beckhoff Bus Terminal system with a cost-optimized module in a compact housing. It supports up to 64 Bus Terminals; with the K‑Bus extension interface (KL9020 and KL9050) up to 255 Bus Terminals can be connected. The coupler provides automatic baud rate detection up to 1 Mbaud and two address selection switches. A 5‑pin open-style connector for the fieldbus connection is supplied; the optional ZS1052-3000 connector with integrated terminating resistor can be fitted.

Features

• Supports 64 Bus Terminals (up to 255 with KL9020 / KL9050 K‑Bus extension)
• Digital I/O capacity: up to 960 signals
• Analog I/O capacity: up to 60 signals
• PDOs (CANopen): 16 Rx / 16 Tx
• CANopen functions: life/node guarding, heartbeat, emergency object, object mapping, store/restore
• Automatic baud rate detection up to 1 Mbaud
• Address assignment via two selection switches
• Fieldbus connector: 5‑pin open-style connector (plug included)
• Optional terminating connector: ZS1052-3000 with integrated resistor
• Configuration via KS2000 software or via the controller

Technical specifications

• Model: BK5150
• Bus protocol: CANopen
• Compatibility: Beckhoff Bus Terminal system (COMPACT controllers CANopen)
• Supported Bus Terminals: 64 (up to 255 with KL9020 / KL9050)
• Digital I/O: up to 960 inputs/outputs
• Analog I/O: up to 60 inputs/outputs
• PDOs: 16 Rx / 16 Tx
• Baud rate: automatic detection up to 1 Mbaud
• Connectivity: 5‑pin open-style connector (plug included); optional ZS1052-3000 terminating connector
• Configuration: KS2000 software or via controller
