7" touch screen I4Gen TS

10"industrialUSB

Overview

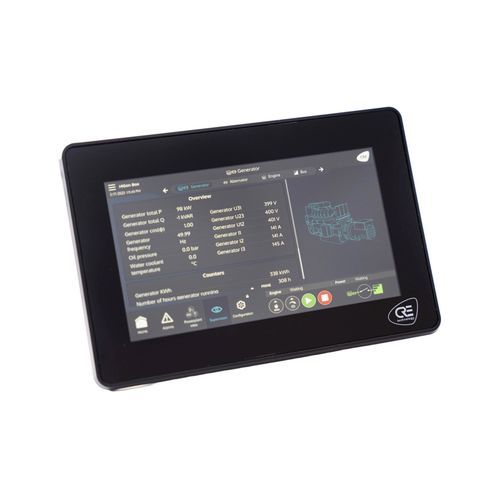

The I4Gen TS is an industrial color touch screen (HMI) that provides an ergonomic, local interface for monitoring, configuring and controlling COMPACT series controllers when used in parallel with an I4Gen Box.

Important note
The I4Gen TS does not operate autonomously. It must be connected in parallel with an I4Gen Box using an HDMI cable (video) and a USB-C cable (touch/communication).

Key functions

• Local HMI for real-time monitoring of controller status
• Configuration and control interface for COMPACT series controllers
• Operates in parallel with I4Gen Box (non-autonomous local interface)

Variations

• 10-inch screen size (this page variant)
• 7-inch screen size (alternative variant)

Available documentation (titles)

• I4Gen Box / I4Gen TS – Datasheet (EN / FR / ES)
• I4Gen Box / I4Gen TS – Operator manual (EN / FR / ES)
• I4Gen TS 10-inch – Certification of conformity (EN / FR)

Related accessories & products (listed on page)

• I4Gen Box (remote monitoring module)
• A58W1 – Angled HDMI cable for I4Gen Box / I4Gen TS
• A58W2 – Angled USB-C cable for I4Gen Box / I4Gen TS

Technical specifications

• Product family / model: I4Gen TS
• Type: Industrial color touch screen (HMI)
• Primary use: Local interface for monitoring, configuration and control of COMPACT series controllers
• Operation: Works only in parallel with an I4Gen Box (non-autonomous)
• Required connections: HDMI (video) and USB-C (touch/communication) to I4Gen Box
• Screen sizes available: 10-inch (this page) and 7-inch (alternative)
• Documentation available: Datasheet, Operator manual, Certification of conformity
