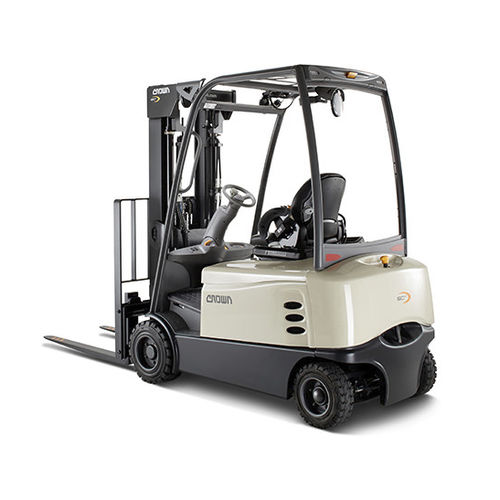

Electric forklift SCF 62 series
ride-onoutdoorindustrial

Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial
Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial
Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial - image - 2
Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial - image - 3
Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial - image - 4
Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial - image - 5
Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial - image - 6
Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial - image - 7
Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial - image - 8
Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial - image - 9
Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial - image - 10
Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial - image - 11
Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial - image - 12
Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial - image - 13
Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial - image - 14
Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial - image - 15
Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial - image - 16
Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial - image - 17
Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial - image - 18
Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial - image - 19
Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial - image - 20
Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial - image - 21
Electric forklift - SCF 62 series - CROWN - ride-on / outdoor / industrial - image - 22
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, industrial, outdoor
Other characteristics
4-wheel, counterbalanced
Carrying capacity

Max.: 2,000 kg
(4,409.2 lb)

Min.: 1,600 kg
(3,527.4 lb)

Lifting height

Max.: 8,075 mm
(317.91 in)

Min.: 0 mm

Overall width

Max.: 1,130 mm
(44.5 in)

Min.: 1,070 mm
(42.1 in)

Load center distance

500 mm
(19.7 in)

Weight without load

2,570 kg, 2,743 kg, 2,767 kg
(5,665.9 lb, 6,047.3 lb, 6,100.2 lb)

Axle loading with maximum load front

Max.: 4,883 kg
(10,765.2 lb)

Min.: 3,998 kg
(8,814.1 lb)

Axle loading with maximum load rear

Max.: 985 kg
(2,171.6 lb)

Min.: 810 kg
(1,785.7 lb)

Axle loading without load front

Max.: 1,763 kg
(3,886.7 lb)

Min.: 1,491 kg
(3,287.1 lb)

Axle loading without load rear

Max.: 1,966 kg
(4,334.3 lb)

Min.: 1,892 kg
(4,171.1 lb)

Track width front

920 mm
(36.2 in)

Track width rear

890 mm
(35 in)

Height to top of overhead guard

1,990 mm, 2,105 mm
(78.3 in, 82.9 in)

Seat height

1,078 mm
(42.4 in)

Tow couplig height

520 mm
(20.5 in)

Fork carriage width

965 mm, 990 mm
(38 in, 39 in)

Ground clearance under mast with load

75 mm
(3 in)

Ground clearance at center of wheelbase with load

105 mm
(4.1 in)

Turning circle radius

1,710 mm, 1,820 mm
(67.3 in, 71.7 in)

Travel speed

16 km/h
(9.9 mph)

Lifting speed

Max.: 0.56 m/s
(1.837 ft/s)

Min.: 0.49 m/s
(1.608 ft/s)

Lowering speed

0.46 m/s, 0.51 m/s
(1.509 ft/s, 1.673 ft/s)

Rated drawbar pull

Max.: 2,500 N

Min.: 2,037 N

Gradeability

Max.: 14.8 %

Min.: 8 %

Maximum operating pressure

175 bar
(2,538.2 psi)

Oil flow

30.3 l/min
(8 us gal/min)

Description

4-Wheel Forklift The SC Series four-wheel forklift offers the handling and stability of a larger forklift but allows for manoeuvrability in congested areas. The SC Series Forklift Provides More Value and Versatility This Crown forklift delivers the power, manoeuvrability and dependability to satisfy the demands of both the application and the operator. Attention to detail, advanced engineering, a solid foundation and task-focused ergonomics – that’s the ideal balance you find on the SC Series. A Personal Approach Whether they work indoors or out, the SC Series forklift provides a work environment that makes the operator’s life easier. Legendary Robustness You can see it in the smallest detail because we engineer our forklift trucks for exceptional reliability. Nested I-beam masts to minimise longitudinal, lateral and torsional flexibility. Integrated sideshifter featuring a carriage that shields the cylinders and helps prevent hydraulic oil leaks. Crown-designed and built electric motors with the highest thermal rating in the industry. Symmetrical box frame construction to eliminate frame distortion caused by impacts of the forklift. Rugged steer axles feature heavy-duty tapered roller bearings to withstand the stress of rough surfaces and dock boards.
