Electric forklift C-B 40-50 Series
ride-onindooroutdoor

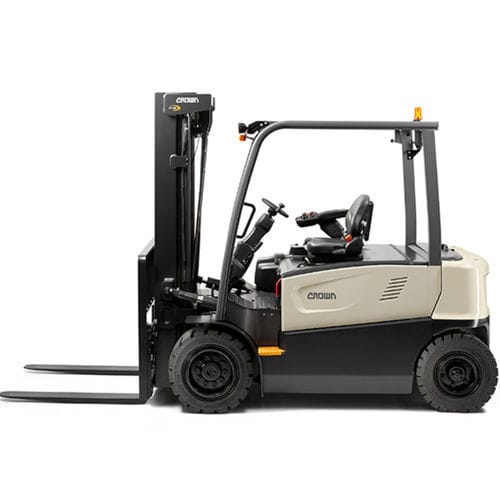

Electric forklift -  C-B 40-50 Series - CROWN - ride-on / indoor / outdoor
Electric forklift -  C-B 40-50 Series - CROWN - ride-on / indoor / outdoor
Electric forklift -  C-B 40-50 Series - CROWN - ride-on / indoor / outdoor - image - 2
Electric forklift -  C-B 40-50 Series - CROWN - ride-on / indoor / outdoor - image - 3
Electric forklift -  C-B 40-50 Series - CROWN - ride-on / indoor / outdoor - image - 4
Electric forklift -  C-B 40-50 Series - CROWN - ride-on / indoor / outdoor - image - 5
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, industrial, for warehouse, indoor, outdoor
Other characteristics
4-wheel, counterbalanced, with super-elastic tires
Carrying capacity

Min.: 4,000 kg
(8,818.5 lb)

Max.: 5,000 kg
(11,023.1 lb)

Lifting height

6,500 mm
(255.91 in)

Overall width

Min.: 1,470 mm
(57.9 in)

Max.: 1,735 mm
(68.3 in)

Overall length

4,007 mm, 4,037 mm
(157.8 in, 158.9 in)

Load center distance

500 mm
(19.7 in)

Weight without load

4,852 kg, 5,267 kg, 5,574 kg, 5,603 kg
(10,696.8 lb, 11,611.7 lb, 12,288.6 lb, 12,352.5 lb)

Axle loading with maximum load front

9,874 kg, 10,607 kg, 11,415 kg, 11,450 kg
(21,768.4 lb, 23,384.4 lb, 25,165.8 lb, 25,242.9 lb)

Axle loading with maximum load rear

1,138 kg, 1,312 kg, 1,318 kg, 1,320 kg
(2,508.9 lb, 2,892.5 lb, 2,905.7 lb, 2,910.1 lb)

Axle loading without load front

3,695 kg, 3,730 kg, 3,735 kg, 3,770 kg
(8,146.1 lb, 8,223.2 lb, 8,234.3 lb, 8,311.4 lb)

Axle loading without load rear

3,282 kg, 3,732 kg, 3,992 kg, 3,998 kg
(7,235.6 lb, 8,227.7 lb, 8,800.9 lb, 8,814.1 lb)

Track width front

1,160 mm, 1,168 mm
(45.7 in, 46 in)

Track width rear

1,111 mm
(43.7 in)

Free lift

Min.: 160 mm
(6.3 in)

Max.: 2,030 mm
(79.9 in)

Overall height with mast raised

Min.: 3,880 mm
(152.8 in)

Max.: 7,330 mm
(288.6 in)

Height to top of overhead guard

2,345 mm, 2,350 mm
(92.3 in, 92.5 in)

Seat height

1,297 mm, 1,303 mm
(51.1 in, 51.3 in)

Tow couplig height

415 mm
(16.3 in)

Length to fork face

2,957 mm, 2,987 mm
(116.4 in, 117.6 in)

Fork carriage width

1,250 mm, 1,330 mm
(49.2 in, 52.4 in)

Ground clearance under mast with load

120 mm, 130 mm
(4.7 in, 5.1 in)

Ground clearance at center of wheelbase with load

160 mm
(6.3 in)

Turning circle radius

2,620 mm, 2,645 mm
(103.1 in, 104.1 in)

Travel speed

15 km/h, 16 km/h
(9.3 mph, 9.9 mph)

Lifting speed

Min.: 0.31 m/s
(1.017 ft/s)

Max.: 0.47 m/s
(1.542 ft/s)

Lowering speed

0.45 m/s, 0.48 m/s
(1.476 ft/s, 1.575 ft/s)

Rated drawbar pull

18,620 N

Gradeability

Min.: 15 %

Max.: 27 %

Maximum operating pressure

190 bar, 210 bar, 230 bar
(2,755.7 psi, 3,045.8 psi, 3,335.9 psi)

Oil flow

28 l/min
(7.4 us gal/min)

Noise level

70 dB

Description

The powerful C-B 40-50 Series electric forklifts offer a clean and silent solution for heavy-duty load handling applications. Forklifts Energised to Excel Indoors and Out Reduce your carbon footprint with Crown’s C-B Series. With capacities from 2.5 to 5.0 tons, these electric forklifts offer the strength and stability often associated with IC lift trucks. Energised with 80 volts of clean, efficient electric power, the C-B Series can perform a variety of demanding tasks in both indoor and outdoor applications with ease. Performance and Productivity In tough warehousing, manufacturing and distribution applications, the C-B Series can boost your productivity with powerful performance, manoeuvrability, stability, and energy efficiency. The dual traction motors deliver smooth and responsive acceleration as well as reliable traction in slippery conditions. The forklifts feature power steering, a small turning radius and regenerative, electrically assisted braking. Economic, standard, or high productivity? With three different operating modes you can choose your preferred level of energy efficiency. A turtle mode can be activated in delicate environments to reduce travel speed without impacting the lift speed. To enhance operator efficiency, a range of intelligent operator assistance systems is available, such as operator sensing system, mast lowering interlock and tilt lockout, speed reduction in turns, electronic parking brake and unlimited ramp hold. Comfort, Confidence and Control The C-B Series forklifts’ ergonomic design keeps the operator in complete control, improving productivity and reducing stress and fatigue.
