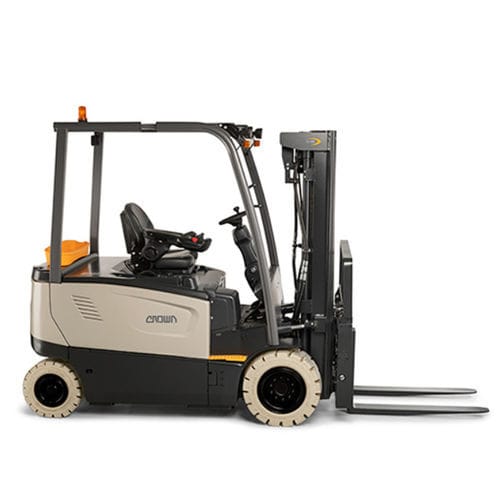

Electric forklift C-B 25-35 Series
ride-onindooroutdoor

Electric forklift - C-B 25-35 Series - CROWN - ride-on / indoor / outdoor
Electric forklift - C-B 25-35 Series - CROWN - ride-on / indoor / outdoor
Electric forklift - C-B 25-35 Series - CROWN - ride-on / indoor / outdoor - image - 2
Electric forklift - C-B 25-35 Series - CROWN - ride-on / indoor / outdoor - image - 3
Electric forklift - C-B 25-35 Series - CROWN - ride-on / indoor / outdoor - image - 4
Electric forklift - C-B 25-35 Series - CROWN - ride-on / indoor / outdoor - image - 5
Electric forklift - C-B 25-35 Series - CROWN - ride-on / indoor / outdoor - image - 6
Electric forklift - C-B 25-35 Series - CROWN - ride-on / indoor / outdoor - image - 7
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, industrial, for warehouse, indoor, outdoor
Other characteristics
4-wheel, with super-elastic tires, eco-friendly, rugged
Carrying capacity

Max.: 3,500 kg
(7,716.2 lb)

Min.: 2,500 kg
(5,511.6 lb)

Lifting height

6,010 mm
(236.61 in)

Overall width

1,245 mm
(49 in)

Overall length

3,379 mm, 3,530 mm, 3,614 mm
(133 in, 139 in, 142.3 in)

Load center distance

500 mm
(19.7 in)

Weight without load

4,623 kg, 5,068 kg, 5,486 kg
(10,192 lb, 11,173 lb, 12,094.6 lb)

Axle loading with maximum load front

6,275 kg, 7,197 kg, 7,940 kg
(13,834 lb, 15,866.7 lb, 17,504.7 lb)

Axle loading with maximum load rear

848 kg, 870 kg, 1,046 kg
(1,869.5 lb, 1,918 lb, 2,306 lb)

Axle loading without load front

2,284 kg, 2,532 kg, 2,547 kg
(5,035.4 lb, 5,582.1 lb, 5,615.2 lb)

Axle loading without load rear

2,339 kg, 2,521 kg, 2,954 kg
(5,156.6 lb, 5,557.9 lb, 6,512.5 lb)

Track width front

998 mm
(39.3 in)

Track width rear

998 mm
(39.3 in)

Free lift

147 mm, 152 mm
(5.8 in, 6 in)

Overall height with mast raised

3,760 mm, 3,990 mm
(148 in, 157.1 in)

Height to top of overhead guard

2,185 mm, 2,210 mm
(86 in, 87 in)

Seat height

1,070 mm
(42.1 in)

Tow couplig height

392 mm
(15.4 in)

Length to fork face

2,329 mm, 2,480 mm, 2,564 mm
(91.7 in, 97.6 in, 100.9 in)

Fork carriage width

1,103 mm, 1,115 mm
(43.4 in, 43.9 in)

Ground clearance under mast with load

130 mm
(5.1 in)

Ground clearance at center of wheelbase with load

140 mm
(5.5 in)

Turning circle radius

1,950 mm, 2,095 mm, 2,155 mm
(76.8 in, 82.5 in, 84.8 in)

Travel speed

16 km/h, 18 km/h
(9.9 mph, 11.2 mph)

Lifting speed

Max.: 0.6 m/s
(1.969 ft/s)

Min.: 0.38 m/s
(1.247 ft/s)

Lowering speed

Max.: 0.5 m/s
(1.64 ft/s)

Min.: 0.46 m/s
(1.509 ft/s)

Rated drawbar pull

16,426 N, 17,338 N

Gradeability

Max.: 38 %

Min.: 20 %

Oil flow

26 l/min
(6.9 us gal/min)

Noise level

68 dB

Description

The C-B 25-35 Series electric forklifts are robust, manoeuvrable performers, ideal for rack storage, dock work and transport. Performance and Productivity In tough warehousing, manufacturing and distribution applications, the C-B Series can boost your productivity with powerful performance, manoeuvrability, stability, and energy efficiency. The dual traction motors deliver smooth and responsive acceleration as well as reliable traction in slippery conditions. The forklifts feature power steering, a small turning radius and regenerative, electrically assisted braking. Economic, standard, or high productivity? With three different operating modes you can choose your preferred level of energy efficiency. A turtle mode can be activated in delicate environments to reduce travel speed without impacting the lift speed. To enhance operator efficiency, a range of intelligent operator assistance systems is available, such as operator sensing system, mast lowering interlock and tilt lockout, speed reduction in turns, electronic parking brake and unlimited ramp hold. Comfort, Confidence and Control The C-B Series forklifts’ ergonomic design keeps the operator in complete control, improving productivity and reducing stress and fatigue. Operator Compartment The spacious compartment with adjustable steer column offers ample legroom, knee clearance and extra headroom. Intuitive controls are within easy reach. A wide and low entry step allows quick and easy entry/exit.
