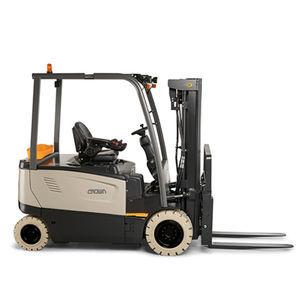

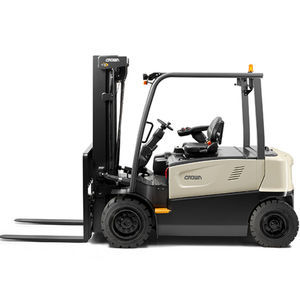

Electric forklift FC 5700 Series
ride-onfor warehouseindustrial

Electric forklift - FC 5700 Series - CROWN - ride-on / for warehouse / industrial
Electric forklift - FC 5700 Series - CROWN - ride-on / for warehouse / industrial
Electric forklift - FC 5700 Series - CROWN - ride-on / for warehouse / industrial - image - 2
Electric forklift - FC 5700 Series - CROWN - ride-on / for warehouse / industrial - image - 3
Electric forklift - FC 5700 Series - CROWN - ride-on / for warehouse / industrial - image - 4
Electric forklift - FC 5700 Series - CROWN - ride-on / for warehouse / industrial - image - 5
Electric forklift - FC 5700 Series - CROWN - ride-on / for warehouse / industrial - image - 6
Electric forklift - FC 5700 Series - CROWN - ride-on / for warehouse / industrial - image - 7
Electric forklift - FC 5700 Series - CROWN - ride-on / for warehouse / industrial - image - 8
Electric forklift - FC 5700 Series - CROWN - ride-on / for warehouse / industrial - image - 9
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
handling, industrial, for warehouse
Other characteristics
4-wheel, counterbalanced
Carrying capacity

Max.: 3,000 kg
(6,613.9 lb)

Min.: 2,000 kg
(4,409.2 lb)

Lifting height

Max.: 7,925 mm
(312.01 in)

Min.: 2,665 mm
(104.92 in)

Overall width

1,100 mm, 1,115 mm, 1,210 mm
(43.3 in, 43.9 in, 47.6 in)

Load center distance

400 mm, 410 mm, 500 mm
(15.7 in, 16.1 in, 19.7 in)

Weight without load

Max.: 4,048 kg
(8,924.3 lb)

Min.: 3,282 kg
(7,235.6 lb)

Axle loading with maximum load front

Max.: 7,269 kg
(16,025.4 lb)

Min.: 5,461 kg
(12,039.4 lb)

Axle loading with maximum load rear

Max.: 1,093 kg
(2,409.7 lb)

Min.: 855 kg
(1,885 lb)

Axle loading without load front

Max.: 2,443 kg
(5,385.9 lb)

Min.: 2,170 kg
(4,784 lb)

Axle loading without load rear

Max.: 3,323 kg
(7,326 lb)

Min.: 2,304 kg
(5,079.5 lb)

Track width front

937 mm, 965 mm, 1,005 mm, 1,029 mm
(36.9 in, 38 in, 39.6 in, 40.5 in)

Track width rear

914 mm
(36 in)

Free lift

Max.: 2,665 mm
(104.9 in)

Min.: 145 mm
(5.7 in)

Overall height with mast raised

Max.: 9,170 mm
(361 in)

Min.: 3,355 mm
(132.1 in)

Height to top of overhead guard

Max.: 2,300 mm
(90.6 in)

Min.: 2,120 mm
(83.5 in)

Seat height

1,251 mm
(49.3 in)

Tow couplig height

240 mm
(9.4 in)

Fork carriage width

965 mm, 1,120 mm
(38 in, 44.1 in)

Ground clearance under mast with load

76 mm
(3 in)

Ground clearance at center of wheelbase with load

122 mm
(4.8 in)

Turning circle radius

Max.: 1,975 mm
(77.8 in)

Min.: 1,690 mm
(66.5 in)

Travel speed

17.7 km/h, 19.7 km/h
(11 mph, 12.2 mph)

Lifting speed

Max.: 0.58 m/s
(1.903 ft/s)

Min.: 0.41 m/s
(1.345 ft/s)

Lowering speed

0.46 m/s, 0.51 m/s
(1.509 ft/s, 1.673 ft/s)

Rated drawbar pull

Max.: 4,462 N

Min.: 3,679 N

Gradeability

Max.: 17.3 %

Min.: 8.4 %

Maximum operating pressure

230 bar
(3,335.9 psi)

Oil flow

56.8 l/min
(15 us gal/min)

Description

The FC Series is a sit-down counterbalance forklift truck ideal for dock work, transport, attachments and stacking in racks. It is designed for operator comfort and visibility. The FC Forklift Truck Delivers Productivity with Every Move The Crown FC Series forklift truck features an ideal combination of productivity and power. Exceptional manoeuvrability and a range of capacities enable the FC Series to meet even more of your material handling needs. Performance that Adds Up Thanks to fast acceleration and travel speeds the FC Series forklift truck delivers outstanding performance. The hydraulic system provides high lift, tilt and lower speeds, resulting in increased productivity. The dual traction motors allow for excellent acceleration and torque, as well as reliable traction in slippery conditions. The FC Forklift Truck Offers Outstanding Manoeuvrability Space-saving design provides manoeuvrability in tight spaces and enables you to use the FC Series where other counterbalance forklift trucks simply won’t fit. Dual traction motors and steering axle geometry greatly improve turning radius allowing the FC Series to spin 360° in an aisle without disturbing surrounding racks or pallets.
