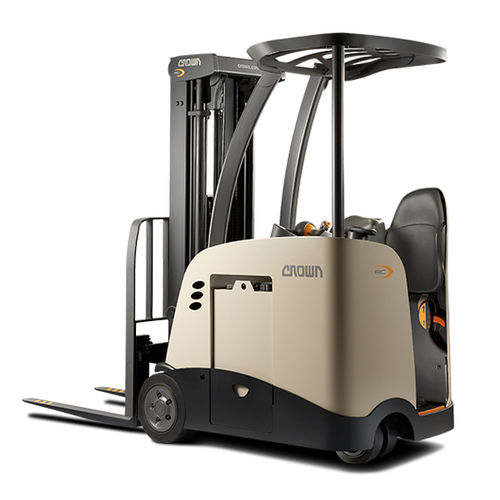

Electric forklift RC 57 Series
stand-onindoorhandling

Electric forklift - RC 57 Series - CROWN - stand-on / indoor / handling
Electric forklift - RC 57 Series - CROWN - stand-on / indoor / handling
Electric forklift - RC 57 Series - CROWN - stand-on / indoor / handling - image - 2
Electric forklift - RC 57 Series - CROWN - stand-on / indoor / handling - image - 3
Electric forklift - RC 57 Series - CROWN - stand-on / indoor / handling - image - 4
Electric forklift - RC 57 Series - CROWN - stand-on / indoor / handling - image - 5
Electric forklift - RC 57 Series - CROWN - stand-on / indoor / handling - image - 6
Electric forklift - RC 57 Series - CROWN - stand-on / indoor / handling - image - 7
Electric forklift - RC 57 Series - CROWN - stand-on / indoor / handling - image - 8
Electric forklift - RC 57 Series - CROWN - stand-on / indoor / handling - image - 9
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
stand-on
Applications
handling, indoor
Other characteristics
counterbalanced, 3-wheel, medium-load
Carrying capacity

Min.: 1,500 kg
(3,306.9 lb)

Max.: 1,800 kg
(3,968.3 lb)

Lifting height

Min.: 0 mm
(0 in)

Max.: 7,010 mm
(275.98 in)

Overall width

1,065 mm
(41.9 in)

Load center distance

500 mm
(19.7 in)

Weight without load

2,690 kg, 2,880 kg, 2,900 kg, 2,930 kg
(5,930.4 lb, 6,349.3 lb, 6,393.4 lb, 6,459.5 lb)

Axle loading without load front

1,810 kg, 1,890 kg, 2,050 kg, 2,200 kg
(3,990.4 lb, 4,166.7 lb, 4,519.5 lb, 4,850.2 lb)

Axle loading without load rear

1,840 kg, 1,970 kg, 2,035 kg, 2,120 kg
(4,056.5 lb, 4,343.1 lb, 4,486.4 lb, 4,673.8 lb)

Track width front

890 mm
(35 in)

Track width rear

170 mm
(6.7 in)

Free lift

Min.: 160 mm
(6.3 in)

Max.: 2,145 mm
(84.4 in)

Overall height with mast raised

Min.: 3,350 mm
(131.9 in)

Max.: 8,385 mm
(330.1 in)

Height to top of overhead guard

2,145 mm, 2,235 mm
(84.4 in, 88 in)

Seat height

240 mm
(9.4 in)

Fork carriage width

Min.: 205 mm
(8.1 in)

Max.: 840 mm
(33.1 in)

Ground clearance under mast with load

76 mm
(3 in)

Ground clearance at center of wheelbase with load

107 mm
(4.2 in)

Turning circle radius

1,313 mm, 1,372 mm, 1,427 mm, 1,488 mm
(51.7 in, 54 in, 56.2 in, 58.6 in)

Travel speed

11.6 km/h
(7.2 mph)

Lifting speed

0.28 m/s, 0.33 m/s, 0.56 m/s
(0.919 ft/s, 1.083 ft/s, 1.837 ft/s)

Lowering speed

0.46 m/s
(1.509 ft/s)

Maximum operating pressure

175 bar
(2,538.2 psi)

Oil flow

15 l/min, 30 l/min
(4 us gal/min, 7.9 us gal/min)

Description

The RC Series stand-up forklift features a side-stance operator compartment that maximises visibility and allows for easy entry/exit in applications where the operator is frequently on and off the truck. When you're looking for one forklift that can handle a wide variety of tasks, whether it's dock work, transport or replenishment and retrieval in the aisle, the RC Series provides a compact, manoeuvrable solution with exceptional ergonomics, comfort and ride control. Application Versatility The RC stand-up forklift offers the flexibility to easily move from trailer loading and unloading to dock work and from transport to retrieval and replenishment in the aisle. Ready for Multiple Environments Equally at home in the heat of the day and the chill of cold storage, the RC forklift is built to handle temperature extremes from shift to shift. Attachment-Friendly A full range of attachment options enables the RC Series to handle specialised loads, with pallets and without. The side-stance design of the RC Series provides wide open views of the forks and load as well as the direction of travel. The sculpted power unit curves on the right side, providing a clear view of the forks for increased productivity. The angled pillar and overhead guard provides for enhanced visibility outside and above the operator compartment. Rock-Solid Performance Crown’s proactive Intrinsic Stability System addresses the potential causes of lift truck instability, enabling operators to perform tasks with confidence. Hydraulic, travel, cornering and ramp speeds are all monitored and controlled as a system to help avoid unsafe operation.
