Diesel forklift C-D 20-35 Series
ride-onoutdoorindustrial

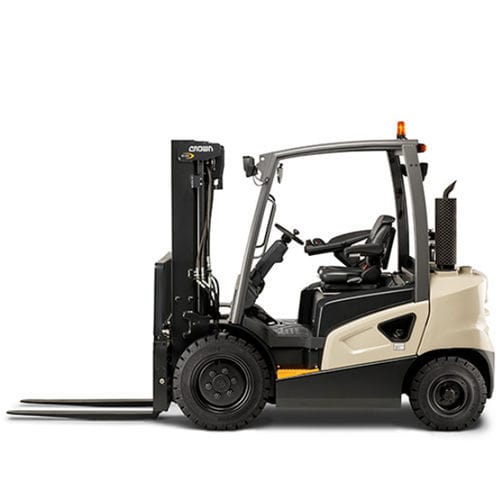

Diesel forklift - C-D 20-35 Series - CROWN - ride-on / outdoor / industrial
Diesel forklift - C-D 20-35 Series - CROWN - ride-on / outdoor / industrial
Diesel forklift - C-D 20-35 Series - CROWN - ride-on / outdoor / industrial - image - 2
Diesel forklift - C-D 20-35 Series - CROWN - ride-on / outdoor / industrial - image - 3
Diesel forklift - C-D 20-35 Series - CROWN - ride-on / outdoor / industrial - image - 4
Diesel forklift - C-D 20-35 Series - CROWN - ride-on / outdoor / industrial - image - 5
Diesel forklift - C-D 20-35 Series - CROWN - ride-on / outdoor / industrial - image - 6
Diesel forklift - C-D 20-35 Series - CROWN - ride-on / outdoor / industrial - image - 7
Diesel forklift - C-D 20-35 Series - CROWN - ride-on / outdoor / industrial - image - 8
Diesel forklift - C-D 20-35 Series - CROWN - ride-on / outdoor / industrial - image - 9
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Operator
ride-on
Applications
handling, industrial, outdoor
Other characteristics
4-wheel, counterbalanced, increased safety, rugged, for harsh environments
Carrying capacity

Max.: 3,500 kg
(7,716.2 lb)

Min.: 2,000 kg
(4,409.2 lb)

Lifting height

8,250 mm
(324.8 in)

Overall width

1,170 mm, 1,197 mm, 1,255 mm
(46.1 in, 47.1 in, 49.4 in)

Overall length

Max.: 3,828 mm
(150.7 in)

Min.: 3,624 mm
(142.7 in)

Load center distance

500 mm
(19.7 in)

Weight without load

Max.: 4,720 kg
(10,405.8 lb)

Min.: 3,830 kg
(8,443.7 lb)

Axle loading with maximum load front

Max.: 7,302 kg
(16,098.2 lb)

Min.: 4,977 kg
(10,972.4 lb)

Axle loading with maximum load rear

Max.: 1,012 kg
(2,231.1 lb)

Min.: 806 kg
(1,776.9 lb)

Axle loading without load front

Max.: 1,825 kg
(4,023.4 lb)

Min.: 1,755 kg
(3,869.1 lb)

Axle loading without load rear

Max.: 2,965 kg
(6,536.7 lb)

Min.: 2,005 kg
(4,420.3 lb)

Track width front

975 mm, 982 mm, 1,026 mm
(38.4 in, 38.7 in, 40.4 in)

Track width rear

990 mm
(39 in)

Free lift

Max.: 2,765 mm
(108.9 in)

Min.: 147 mm
(5.8 in)

Overall height with mast raised

Max.: 9,500 mm
(374 in)

Min.: 2,820 mm
(111 in)

Height to top of overhead guard

2,183 mm
(85.9 in)

Seat height

1,026 mm
(40.4 in)

Tow couplig height

405.5 mm
(16 in)

Length to fork face

Max.: 2,779 mm
(109.4 in)

Min.: 2,574 mm
(101.3 in)

Fork carriage width

1,103 mm, 1,115 mm
(43.4 in, 43.9 in)

Ground clearance under mast with load

115 mm
(4.5 in)

Ground clearance at center of wheelbase with load

143 mm
(5.6 in)

Turning circle radius

Max.: 2,390 mm
(94.1 in)

Min.: 2,230 mm
(87.8 in)

Travel speed

19 km/h, 20 km/h, 21 km/h
(11.8 mph, 12.4 mph, 13 mph)

Lifting speed

Max.: 0.65 m/s
(2.133 ft/s)

Min.: 0.5 m/s
(1.64 ft/s)

Lowering speed

0.45 m/s, 0.51 m/s
(1.476 ft/s, 1.673 ft/s)

Rated drawbar pull

Max.: 18,470 N

Min.: 17,380 N

Gradeability

Max.: 55.2 %

Min.: 22.3 %

Cubic capacity

58 l
(15.3 gal)

Maximum operating pressure

156 bar
(2,262.6 psi)

Oil flow

76.5 l/min
(20.2 us gal/min)

Noise level

75 dB

Description

Crown’s C-D 20-35 Series diesel forklifts are robust, durable performers, ideal for dock work and transport in rugged outdoor environments. The C-D Series Diesel Forklifts are Built to go the Distance The Crown C-D Series diesel forklifts deliver power, reliability, operator comfort, and serviceability to conquer the tasks of rugged outdoor environments. The powerful turbo diesel engines offer fuel-efficient performance and comply with the latest exhaust emission regulations (EU Stage 5). The IC forklifts are available with load capacities from 2.0 to 5.5 tons. Strength and Productivity in Extreme Environments Do you operate under extreme conditions? The C-D Series diesel forklifts are designed to excel on rugged terrain as well as in extremely dusty, humid, hot, or cold outdoor applications. They provide the right combination of strength, reliability, and application flexibility to help boost your productivity in many challenging industries such as recycling, chemical, building materials, or metal processing. From features that protect critical components in extremely harsh environments to carriage options that handle various load types, these IC forklifts can be optimised to fit the requirements of your operation. Economic, standard, or high productivity? With three different operating modes you can choose your preferred level of energy efficiency. A turtle mode can be activated in delicate environments to reduce travel speed without impacting the lift speed.
