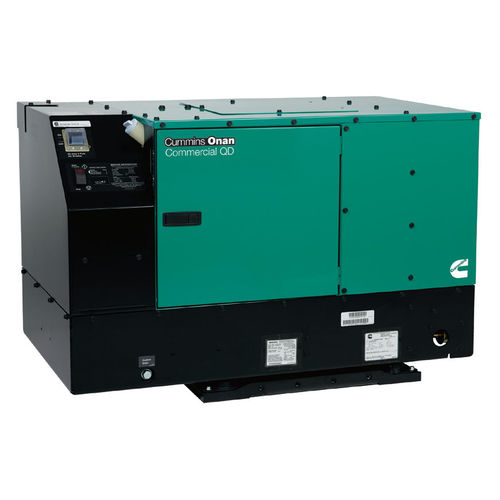

Diesel generator set 10.0HDKCC series

single-phasestationary50 Hz

Product Overview
The Quiet Diesel Series generator sets from Cummins deliver significantly reduced noise and vibration for commercial mobile power applications. Fully enclosed housings integrate cooling, muffler and intake systems to provide up to 15 dB(A) lower sound levels compared with many other diesel sets while maintaining heavy-duty electrical performance.

Highlights

• Frequency: 60 Hz, 50 Hz
• Certification: EPA Tier 4
• Availability: Africa & Middle East, Asia Pacific, Europe, India, Latin America, North America
• Applications: Commercial mobile power (low-noise, low-vibration requirements)

Key Specifications (excerpt)

• High motor-start capability to support heavy loads
• Digitally controlled fuel pump flow to minimize voltage and frequency variation
• Rated for full load at 120° F (50° C) ambient conditions
• 4-point mounting system designed to reduce vibration and deliver clean, quiet power
• Powder-coated and stainless-steel housing options
• Single-side serviceability to minimize compartment space requirements
• Multiple air inlet locations for flexible installation and compact footprint
• Supported frequencies: 50 Hz and 60 Hz (model-dependent)

Ratings & Models
Table (Model | Spec Sheet | Hz | Voltage | Amps | Phase)
generator model | spec sheet | Hz | voltage | amps | phase
5HDKBC-2861 | A-1452 | 60 | 120/240 | 41.7/20.8 | 1
5HDKBB-6880 | A-1452 | 50 | 230 | 21 | 1
5HDKBC-2860 | A-1452 | 60 | 120 | 41.7 | 1
6HDKAV-41934 | A-1486 | 60 | 120 | 50 | 1
6.5HDKAT-6006 | A-1486 | 60 | 100 | 63 | 1
7HDKBL-6000 | A-1577 | 50 | 115/230 | 60.8/30.4 | 1
7.5HDKAT-41934 | A-1486 | 60 | 120 | 63 | 1
7.5HDKAT-41999 | A-1486 | 60 | 120 | 62.5 | 1
8.0HDKAU-41934 | A-1486 | 60 | 120 | 66.6 | 1
8HDKCC-6881 | A-1491 | 50 | 230 | 35 | 1
9.5HDKBM-6000 | A-1678 | 50 | 115/230 | 82.6/41.3 | 1
10HDKCC-42345 | A-1473 | 60 | 120/240 | 83/42 | 1
10HDKCC-4512 | A-1473 | 60 | 120/240 | 83/42 | 1
11HDKBN-6000 | A-1579 | 50 | 115/230 | 95.6/47.8 | 1
12HDKCD-2209 | A-1474 | 60 | 120/240 | 100/50 | 1
12HDKCD-5241 | A-1474 | 60 | 120/240 | 100/50 | 1
13.5HDKBP-6000 | A-1580 | 50 | 115/230 | 117.3/58.6 | 1
17.5HDKBR-6000 | A-1581 | 50 | 115/230 | 152.1/76.1 | 1
19HDKBV-6000 | A-1582 | 50 | 115/230 | 165.2/82.6 | 1

Technical specifications

• Series name: Quiet Diesel Series (Cummins)
• Noise reduction: up to 15 dB(A) quieter than many diesel generators
• Enclosure: fully enclosed units including cooling, muffler and intake systems
• Ambient capability: full-load operation at 120° F (50° C)
• Mounting: 4-point mounting system to minimize vibration
• Housings: powder-coated and stainless-steel options
• Serviceability: single-side service access for compact compartment installation
• Installation flexibility: multiple air inlet locations and several mounting options
• Frequencies supported: 50 Hz and 60 Hz (model-dependent)
• Typical applications: commercial mobile power requiring low noise and low vibration
