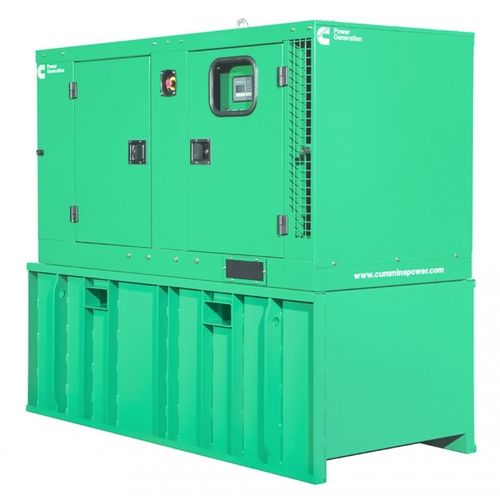

Diesel generator set C17 D5T

three-phasestationary50 Hz

Overview
This Cummins® commercial generator set is a fully integrated power generation system for stationary standby, prime power and continuous duty applications at telecom and industrial sites. The genset combines engine, alternator, control, cooling and enclosure features to support remote operation and site requirements.

Features & Benefits

• Engine - 4-cycle industrial diesel engine, in-line configuration, designed for reliable operation and fast response to load changes.
• Alternator - Low-reactance 2/3 pitch windings for strong motor-start capability and reduced waveform distortion with non-linear loads.
• Control system - PowerCommand® 1.1 electronic controller providing automatic remote start/stop, alarms and status message display for full genset system integration.
• Cooling system - Integral radiator rated for 50 °C ambient with coolant recovery to simplify site heat rejection arrangements.
• Enclosures - Weather-protective, sound-attenuated enclosure; noise level up to 74 dB @ 1 m at 100% load.
• Warranty & support - Supplied with manufacturer warranty and global distributor network for parts and service.
• Remote operations - High-capacity 1000 L fuel tank and lockable, pilferage-protected enclosure for extended unattended operation.
• Serviceability - Optional 1000-hour intervals for fuel, lube oil and air filter changes to extend maintenance intervals.
• Lifting & handling - Single-point lifting arrangement and forklift pockets for transport and installation.
• Integrated ATS - Automatic transfer switch with manual bypass integrated inside the genset enclosure.

Highlights
Frequency: 50 Hz

Rated for — kW — kVA
Prime — 11.8 - 15 — 11.8 - 11.9
Standby — 13 - 17 — 13 - 13.2

Certification: N/A
Product Availability: Africa & Middle East, Asia Pacific, Europe, India, Latin America, North America

Specifications

• Design: 4 cycle, in-line, naturally aspirated
• Bore: 91.7 mm (3.6 in)
• Stroke: 127 mm (5 in)
• Displacement: 2.5 litre (153 in3)
• Cylinder block: Alloy cast iron, in-line 3 cylinder
• Battery capacity: 65 AH
• Battery charging alternator: 36 Amps
• Starting voltage: 12 volt, negative ground
• Fuel system: Direct injection
• Fuel filter: Spin-on fuel filters with water separator
• Air cleaner type: Dry type replaceable element
• Lube oil filter type(s): Spin on full flow filter
• Standard cooling system: 122 °F (50 °C) ambient radiator with coolant recovery system
