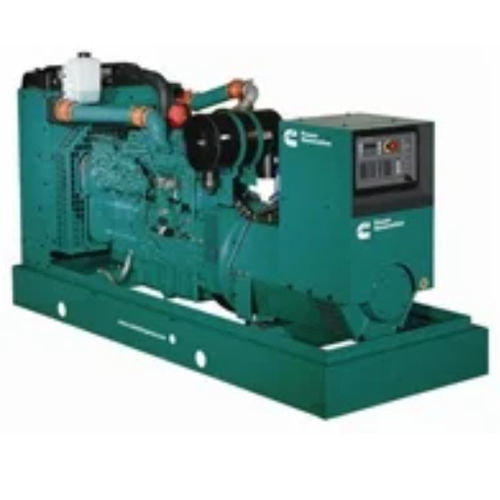

Diesel generator set 6BTAA5.9

three-phasestationary50 Hz

Overview

• Cummins® heavy-duty 4-cycle industrial diesel engine delivering reliable power, low emissions and fast transient response for generator applications.
• Alternator options with selectable motor-start capability, low-reactance 2/3 pitch windings, low waveform distortion under non-linear loads and short-circuit fault-clearing capability.
• PowerCommand® electronic control (standard) for full genset integration: remote start/stop, precise voltage and frequency regulation, alarm/status display, AmpSentry™ protection, output metering and automatic shutdown on fault; NFPA 110 Level 1 compliant.
• Integral set-mounted radiator cooling system designed and tested for rated ambient temperatures.
• Optional weather-protective and sound-attenuated enclosures; dual-wall sub-base and in-skid day fuel tank options.

Highlights

• Frequency: 50 Hz
• Prime rating: 100 kW (125 kVA)
• Standby rating: 110 kW (138 kVA)
• Generator model example: C140 D5
• Fuel type: Diesel
• Availability: Africa & Middle East, Asia Pacific, Europe, India, Latin America, North America

Rated output (single-line table)
Rated for | kW | kVA
Prime | 100 | 125
Standby | 110 | 138

Genset data (single-line table)
Generator model | Frequency (Hz) | Prime kW / kVA | Standby kW / kVA | Fuel type
C140 D5 | 50 | 100 / 125 | 110 / 138 | Diesel

Applications

• Commercial and industrial generator sets

Technical specifications

• Model name: 6BTAA5.9
• Engine type: Cummins® heavy-duty 4-cycle industrial diesel
• Control system: PowerCommand® electronic control (standard)
• Protections: AmpSentry™ protection, automatic shutdown on fault detection, NFPA 110 Level 1 compliance
• Alternator features: selectable motor-start capability, low-reactance 2/3 pitch windings, low waveform distortion with non-linear loads, short-circuit fault-clearing
• Cooling: Integral set-mounted radiator system designed for rated ambient temperatures
• Enclosures: Optional weather-protective and sound-attenuated enclosures available
• Fuel tanks: Dual-wall sub-base tanks and in-skid day tank options
• Frequency: 50 Hz
• Prime rating: 100 kW / 125 kVA
• Standby rating: 110 kW / 138 kVA
• Generator model example: C140 D5
• Fuel type: Diesel
