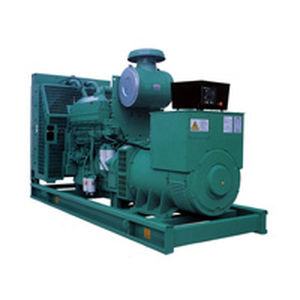

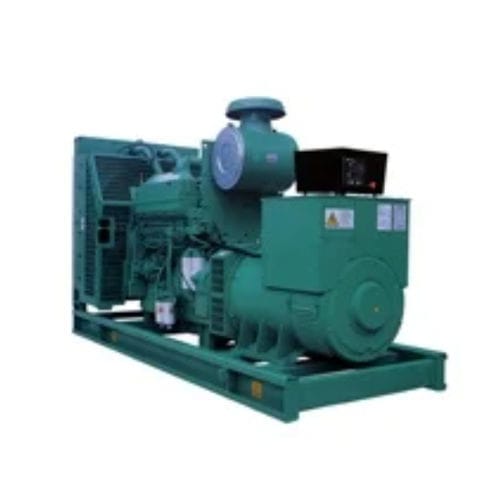

Diesel generator set QSM11
60 Hzindustrialoutdoor

Diesel generator set - QSM11 - CUMMINS GENERATOR TECHNOLOGIES - 60 Hz / industrial / outdoor
Diesel generator set - QSM11 - CUMMINS GENERATOR TECHNOLOGIES - 60 Hz / industrial / outdoor
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Frequency
60 Hz
Applications
industrial
Options and accessories
outdoor, soundproof
Emissions level
Tier 3
Power in kVA

Min.: 338 kVA
(459.55 hp)

Max.: 375 kVA
(509.86 hp)

Rated capacity

Min.: 270 kW
(367.1 hp)

Max.: 300 kW
(407.9 hp)

Description

Product overview
  • Cummins® heavy-duty engine — robust 4‑stroke industrial diesel delivering reliable power, low emissions and fast response to load changes.
  • Alternator — multiple alternator sizes offer selectable motor-starting capability with low 2/3 pitch windings, low waveform distortion with nonlinear loads and fault-clearing short-circuit capability.
  • Permanent magnet generator (PMG) — improves starting and fault-clearing short-circuit performance.
  • Control system — PowerCommand® electronic control standard; full genset system integration, automatic remote start/stop, precise frequency and voltage regulation, alarm and status messaging, AmpSentry™ protection, output metering and automatic shutdown on fault detection; NFPA 110 Level 1 compliance.
  • Cooling — standard cooling package enables reliable prime-power operation up to 52 °C ambient.
  • Enclosures — optional weather-protective and sound-attenuated enclosures available.
  • Fuel tanks — double-wall sub-base fuel tanks available.
  • NFPA capability — accepts full rated load in a single step per NFPA 110 Level 1.
  • Warranty options available.


Technical data
Frequency: 60 Hz

Power ranges (Prime / Standby):
  • Prime: 270 kW / 338 kVA
  • Standby: 300 kW / 375 kVA


Generator models and genset data
  • DQHAB — 60 Hz — Prime 270 kW / 338 kVA — Standby 300 kW / 375 kVA — Fuel: Diesel — Certification: EPA Tier 3
  • C300D6R — 60 Hz — Prime 270 kW / 337 kVA — Standby 300 kW / 375 kVA — Fuel: Diesel — Certification: EPA Tier 3


Applications
  • Commercial and industrial power generation, backup and continuous power for facilities and process equipment


Availability
  • Africa
  • Middle East
  • Asia‑Pacific
  • Europe
  • India
  • Latin America
  • North America


Technical specifications
  • Model: QSM11
  • Brand: Cummins
  • Frequency: 60 Hz
  • Prime power: 270 kW (338 kVA)
  • Standby power: 300 kW (375 kVA)
  • Fuel: Diesel
  • Control: PowerCommand® electronic control (standard)
  • Generator: PMG available
  • Cooling: Standard cooling package, rated to operate at ambient up to 52 °C
  • NFPA 110 Level 1 compliant (accepts full rated load in a single step)
  • Emissions: EPA Tier 3
  • Optional: weather-protective and sound-attenuated enclosures, double-wall sub-base fuel tanks
  • Available genset models: DQHAB, C300D6R
  • Datasheet references: S‑1586, S‑1553
