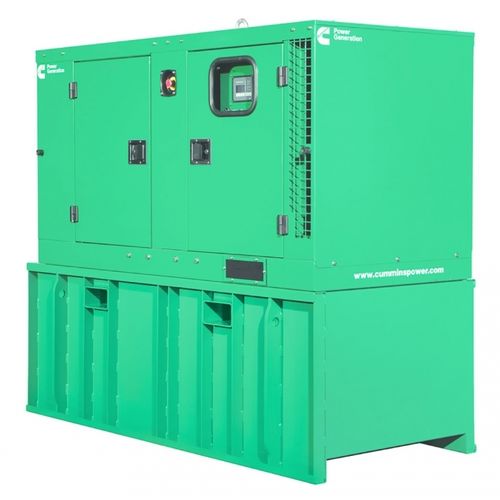

Generator set for telecom applications C16 D6T

dieselthree-phasesingle-phase

Overview
This Cummins® commercial generator set is a fully integrated power generation system designed for telecom applications at remote sites. It supports Standby, Prime and Continuous duty profiles and is configured for reliable autonomous operation and remote management.

Features & Benefits

• Heavy-duty engine — 4-cycle industrial diesel providing reliable power, low emissions and fast response to load changes.
• Alternator — low-reactance 2/3 pitch windings for excellent motor-starting capability and low waveform distortion under non-linear loads.
• Control system — PowerCommand® 1.1 electronic control for full genset integration, automatic remote start/stop, and alarm/status messaging.
• Cooling system — Integral radiator engineered for rated ambient temperatures with coolant recovery system to simplify site heat rejection design.
• Enclosure — Weather-protective, sound-attenuated enclosure rated up to 77 dB at 1 m at 100% load.
• Warranty & support — Supplied with manufacturer warranty and global distributor network for service and parts.
• Remote operations — High-capacity 1000 L fuel tank, lockable pilferage-protected enclosure and robust structure for remote site security.
• Serviceability — Optional extended 1000-hour intervals for fuel filter, lube oil and air filter changes to reduce maintenance frequency.
• Lifting & transport — Single-point lifting arrangement plus forklift pockets for simplified handling.
• Integrated ATS — Automatic transfer switch with manual bypass integrated inside the genset enclosure for compact installation.

Highlights
Frequency: 60 Hz
Rated for (Prime / Standby)
Prime — kW: 14.5 - 16; kVA: 14.5 - 16
Standby — kW: 16 - 16; kVA: 16 - 20
Certification: N/A
Product availability: Africa & Middle East, Asia Pacific, Europe, India, Latin America, North America
Applications: Telecom

Technical specifications / caractéristiques techniques

• Design: 4-cycle, in-line, naturally aspirated
• Bore: 91.7 mm (3.6 in)
• Stroke: 127 mm (5 in)
• Displacement: 2.5 litre (153 in3)
• Cylinder block: Alloy cast iron, in-line 3 cylinder
• Battery capacity: 65 AH
• Battery charging alternator: 36 Amps
• Starting voltage: 12 volt, negative ground
• Fuel system: Direct injection
• Fuel filter: Spin-on fuel filters with water separator
• Air cleaner type: Dry type replaceable element
• Lube oil filter type(s): Spin on full flow filter
• Standard cooling system: 122 °F (50 °C) ambient radiator with coolant recovery system
