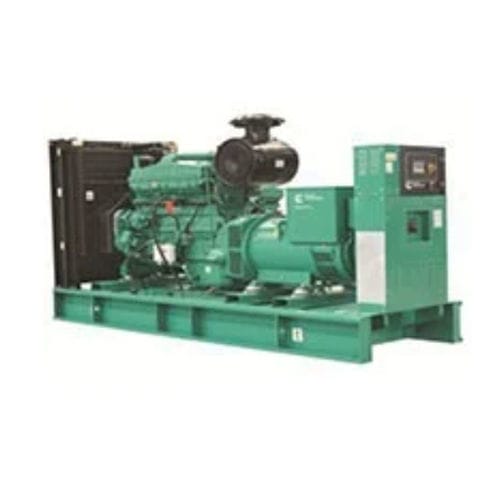

Diesel generator set NTAA855three-phasestationary50 Hz
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Portability
- stationary
- Frequency
- 50 Hz
- Fuel System
- direct fuel injection
- Cooling system
- water-cooled
- Applications
- industrial
- Power in kVA
400 kVA, 440 kVA
(543.85 hp, 598.23 hp)- Rated capacity
320 kW, 352 kW
(435.1 hp, 478.6 hp)- Width
1,500 mm, 1,550 mm
(59.1 in, 61 in)- Height
2,042 mm, 2,430 mm
(80.39 in, 95.67 in)- Weight
3,585 kg, 4,099 kg, 4,777 kg, 5,291 kg
(7,903.57 lb, 9,036.75 lb, 10,531.48 lb, 11,664.66 lb)
Description
Overview
Key data / Summary
Applications
Models and technical data (excerpt)
Features / Technical specifications
- Engine: Cummins NT855 series.
- Type: 4-stroke, water-cooled, turbocharged with air-to-air aftercooling.
- Mechanical structure: cast steel crankshaft, connecting rods, cast-iron cylinder block. Cooling system: integrated water circulation pump and thermostat to optimize engine operating efficiency.
- Filtration: high-precision Fleetguard series filter.
- Alternator: Stamford HC series — rotating magnetic field, single bearing, 4-pole, brushless, drip-proof design, compliant with GB755, BS5000 and IEC34-1.
- Stator: conical-slot structure with 2/3 pitch windings to reduce third-harmonic current waveform distortion under non-linear loads.
- Rotor: flexible drive plate directly coupled to the engine; damper winding reduces parallel oscillation.
- Alternator cooling: direct-driven centrifugal fan.
- Control system: PowerCommand® microprocessor-based control.
- Short-circuit protection: Schneider circuit breaker with patented AmpSentryTM, integrated with PowerCommand® controller.
- Baseframe: bolted steel baseframe with A/V mounts, seismic-capable structure and bottom oil sump.
- Radiator: standard radiator mounted on the generator set.
- Standard accessories: exhaust elbow, expansion joint, silencer, etc.
Key data / Summary
- Frequency: 50 Hz
- Rated (Prime) power: 320 kW / 400 kVA (main power source)
- Rated (Standby) power: 352 kW / 440 kVA (emergency backup)
- Fuel type: Diesel
- Certification: N/A
- Geographic availability: Africa, Middle East, Asia-Pacific, Europe, India, Latin America, North America
Applications
- Industrial and commercial generator sets
Models and technical data (excerpt)
- C440 D5 — Frequency: 50 Hz — Prime: 320 kW / 400 kVA — Standby: 352 kW / 440 kVA — Fuel: Diesel
Features / Technical specifications
- Engine series: NT855
- Engine type: 4-stroke, water-cooled, turbocharged, air-to-air aftercooled
- Rated frequency: 50 Hz
- Prime power (kW/kVA): 320 / 400
- Standby power (kW/kVA): 352 / 440
- Fuel: Diesel
- Alternator: Stamford HC series (4-pole, brushless, rotating magnetic field)
- Control: PowerCommand® microprocessor control
- Electrical protection: Schneider circuit breaker, AmpSentryTM
- Mechanical structure: bolted steel baseframe with anti-vibration mounts and bottom oil sump
- Filtration: Fleetguard high-precision filter
- Cooling system: integrated circulation pump, thermostat, direct-driven centrifugal fan
- Included accessories: exhaust elbow, expansion joint, silencer
- Geographic availability: Africa, Middle East, Asia-Pacific, Europe, India, Latin America, North America
