Process indicator DAT8050digitalpanel-mount
Add to favorites
Compare this product
Characteristics
- Measured value
- process
- Display
- digital
- Type
- panel-mount
Description

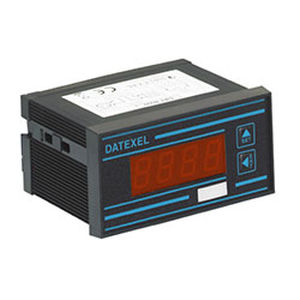

The DAT8050 is a digital panel indicator that is manufactured by Datexel. The unit allows input of 4 - 20 mA current loop signal.
Its input current signal is used to supply the device with a 5 Vdc voltage drop-out on the current loop. This eliminates the need for an external supply source. The operator is able to program the visualization of the measure in the range from -1999 up to 9999 points.
This is to configure the values of the physical or electrical parameter, transmitted on the current loop in the specified setting. The visualization of the unit can be programmed by means of the “SET” and “ENTER” keys found on the front side of the device. When in use, it will be able to program the values required to be visualized.
