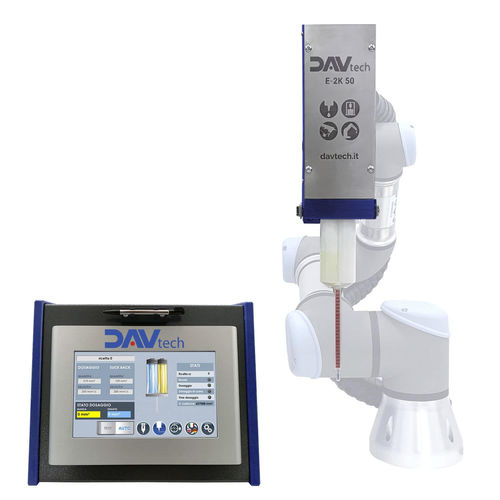

Volumetric dispensing system

structural adhesivecartridgehigh-precision

Volumetric dispensing system ideal for commercial bi-cartridge products pre-filled with: structural adhesives, 2K resins, epoxy adhesives, thermally conductive pastes and gap fillers. Volumetric dispensing, controlled and repeatable, even with the use of pre-filled bi-cartridges. This dispensing system allows you to dispense with maximum precision 2K resins, contained in 50,200 and 400 ml cartridges and with ratios 1:1, 2:1, 4:1 or 10:1. An actuator, controlled in a closed loop by the dedicated controller, extrudes the cartridges, managing the instantaneous flow rate, the discharge of residual pressure, and the level of the cartridges. No part of the dispensing system is in contact with the fluids, which avoids contamination and cleaning operations. FEEDING • Operates with cartridges with a ratio of 1:1, 2:1, 4:1, or 10:1 • Cartridge level monitoring with adjustable alarm • Quick cartridge change system with PokaYoke logic DISPENSING • Volumetric dispensing of bi-cartridges of 50, 200, or 400 ml • Option to insert an interchangeable on/off valve for instant closure • Suck-back function to reduce residual pressure in the mixer and cartridges • Mixer centering and guiding system (optional) PROCESS CONTROL • Controller with a large 7” color touch display • Dispensing management software with a dedicated multilingual graphical interface • Ability to dispense beads, dots, or fillings with adjustable flow rate • Closed-loop motor control for maximum motion control • Programmable automatic purging function • Easy interface with collaborative, anthropomorphic, or Cartesian robots • Easy interface with external PLCs • Remote assistance system.
