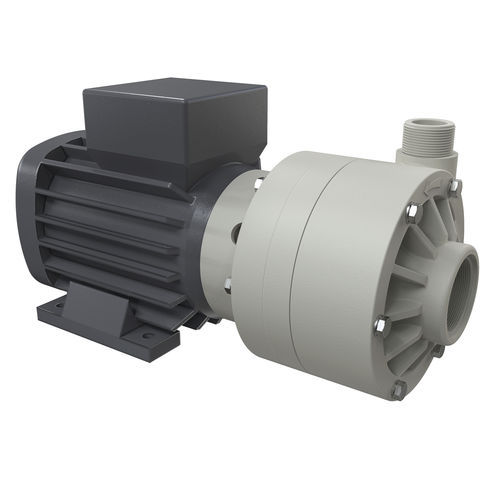

Horizontal mount pump MB 80 bellowsfor chemicalswith electric motor
Add to favorites
Compare this product
Characteristics
- Technology
- bellows
- Fluid
- for chemicals
- Operation
- with electric motor
- Mobility
- stationary
- Domain
- industrial, for the chemical industry, for water treatment, for automotive applications
- Applications
- transfer, drainage
- Material
- PP, PVDF
- Voltage
- 400 V, 380 V
- Protection level
- IP55, standard
- Other characteristics
- horizontal mount, with mechanical seals, direct-drive, seal
- Flow
Max.: 6 m³/h
(211.888 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Head
Max.: 7.5 m
(24'07" )Min.: 0 m
(0'00" )- Power
0.37 kW
(0.5 hp)- Fluid temperature
Max.: 95 °C
(203 °F)Min.: 3 °C
(37.4 °F)- Weight
1.7 kg
(3.75 lb)
Description
Aluminium / cast iron motor (the motor weight may vary, contact the sales office)
THREEPHASE 230/400 V – 50/60 Hz – 2 pole – Efficiency class IE1 – Protection rating IP55 – Ambient temperature -30°C + 45°C
Electric motors available on request
– SINGLEPHASE
– ATEX
Seal o-ring materials
– EPDM
– VITON®
The weight refers only to the packaging without the pump inside
Accessories
FLANGE KIT (DIN standard – ANSI on request):
– KITFLANGMB080P (PP pump)
– KITFLANGMB080F (PVDF pump)
PP or PVDF basket strainers
Aviable Seal
Bellows mechanical seal (new generation with “Self-locking” system)
Spring Aisi 304 – Sealing ring in SILICON CARBIDE + CERAMIC / SILICON CARBIDE + SILICON CARBIDE
Lip seal: VITON or EPDM
