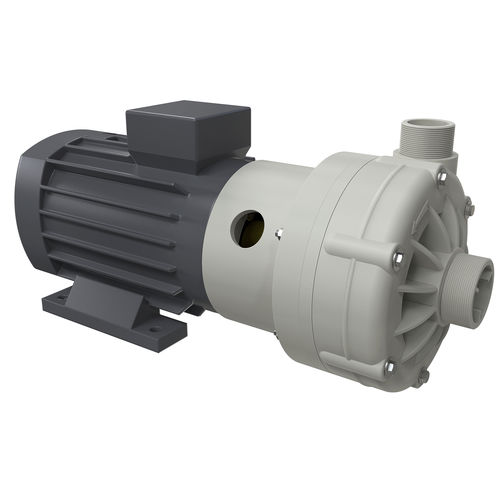

Horizontal mount pump MB 140 for chemicalselectricbellows
Add to favorites
Compare this product
Characteristics
- Fluid
- for chemicals
- Operation
- electric
- Technology
- bellows
- Mobility
- stationary
- Domain
- industrial, for the chemical industry, for water treatment
- Applications
- transfer, drainage
- Material
- PP, ceramic, EPDM, PVDF
- Other characteristics
- mechanical, spring, horizontal mount, with mechanical seals, flow, direct-drive, seal
- Flow
Max.: 40 m³/h
(1,412.58667 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Head
Max.: 21 m
(68'10" )Min.: 0 m
(0'00" )- Power
3 kW
(4.08 hp)- Fluid temperature
Max.: 95 °C
(203 °F)Min.: -30 °C
(-22 °F)- Weight
4 kg, 5 kg, 10 kg
(8.82 lb, 11.02 lb, 22.05 lb)
Description
* The performance values refer to primed pumps (with water at 20°C) with open outlet and vary based on the construction materials.
** Attention: average values of the different materials configurations for ball and ball seat.
Accessories
FLANGE KIT (DIN standard – ANSI available on request):
– KITFLANGMB140P (PP pump)
– KITFLANGMB140F (PVDF pump)
Basket filter in PP or PVDF
Aviable Seal
Bellows mechanical seal (new generation with “Self-locking” system)
Spring Aisi 304 – Sealing ring in SILICON CARBIDE + CERAMIC / SILICON CARBIDE + SILICON CARBIDE
Lip seal: VITON or EPDM
