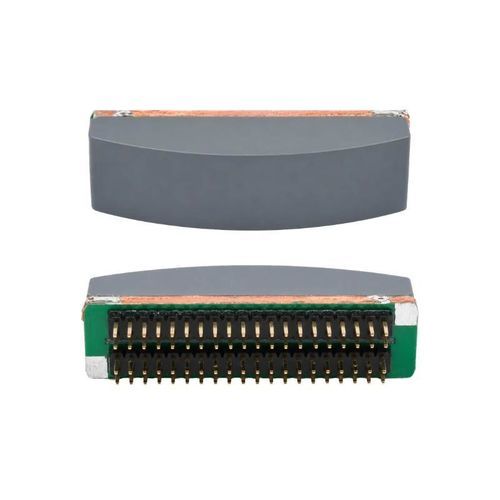

Convex array ultrasonic transducer BBMU-ABD

Product Overview
BBMU-ABD is a convex-array probe assembly designed for abdominal B-mode ultrasound imaging systems. Array curvature and element count are selectable to match scan coverage and system channel architecture. Available configurations use broadband arrays suitable for integration into clinical abdominal ultrasound platforms.

Applications

• Abdominal B-mode imaging
• Convex-array diagnostic ultrasound systems
• Customized array probes for OEM integration

Technical Specifications
Parameter — Specification
Configuration 1 — R50; 128 elements
Configuration 2 — R60; 80 elements
Array type — Convex array

Customization Options

• Array curvature
• Element count
• Operating frequency
• Housing and connector options

Characteristics / Technical specifications

• Model: BBMU-ABD
• Configuration 1: R50; 128 elements
• Configuration 2: R60; 80 elements
• Array type: Convex array
• Customization options: Array curvature; Element count; Operating frequency; Housing and connector options
