Plate ultrasonic transducer BBCL-40KP100

piezoelectricacousticimmersible

Product Overview

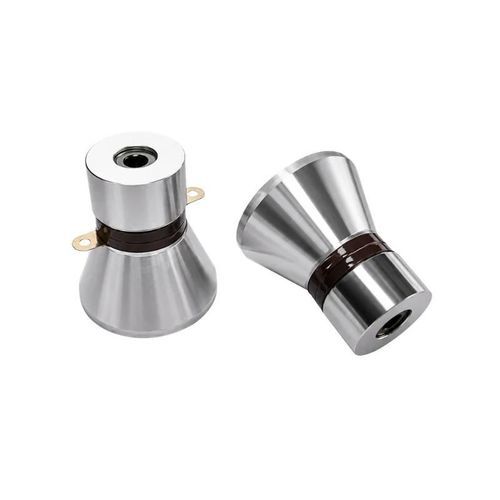

The BBCL-40KP100 is a piezoelectric ultrasonic cleaning transducer for industrial ultrasonic cleaning systems. With a nominal frequency of 40 kHz and a rated power of 100 W, it converts high-frequency electrical energy from an ultrasonic generator into mechanical vibration; the resulting cavitation, acoustic streaming and radiation pressure in the cleaning liquid loosen contaminants and improve cleaning efficiency. The product family covers nominal frequencies of 20, 25, 28, 40, 54 and 80 kHz and rated power levels from 35 to 120 W.

Main Specifications
Parameter | Value
Model | BBCL-40KP100
Nominal frequency | 40 kHz
Resonant frequency | 40 ± 0.5 kHz
Static capacitance | 7800 pF ±10%
Resonant impedance | ≤25 Ω
Rated power | 100 W
Radiating surface diameter | 52 mm
Height | 48 mm

Product Features

• Designed for industrial ultrasonic cleaning equipment
• Piezoelectric ceramic transduction structure
• Compatible with standard ultrasonic generators (frequency matching required)
• Multiple frequency and power configurations available within the family
• Various radiating surface diameters and heights to suit tank and module integration
• Suitable for integration into cleaning tanks and automated cleaning modules

Available Configurations
Model | Resonant frequency | Static capacitance | Resonant impedance | Rated power | Radiating surface diameter | Height
BBCL-20KP120 | 20 ± 0.5 kHz | 9000 pF ±10% | ≤25 Ω | 120 W | 68 mm | 46 mm
BBCL-20KP100 | 20 ± 0.5 kHz | 5000 pF ±10% | ≤25 Ω | 100 W | 68 mm | 94 mm
BBCL-25KP60 | 25 ± 0.5 kHz | 4800 pF ±10% | ≤25 Ω | 60 W | 59 mm | 80 mm
BBCL-28KP120 | 28 ± 0.5 kHz | 7000 pF ±10% | ≤25 Ω | 120 W | 68 mm | 66 mm
BBCL-28KP100 | 28 ± 0.5 kHz | 5000 or 7800 pF ±10% | ≤25 Ω | 100 W | 68 mm | 66 mm
BBCL-28KP60 | 28 ± 0.5 kHz | 3500 or 4800 pF ±10% | ≤25 Ω | 60 W | 59 mm | 68 mm
BBCL-28KP50 | 28 ± 0.5 kHz | 4000 pF ±10% | ≤25 Ω | 50 W | 45 mm | 82 mm
BBCL-40KP100 | 40 ± 0.5 kHz | 7800 pF ±10% | ≤25 Ω | 100 W | 52 mm | 48 mm
BBCL-40KP60 | 40 ± 0.5 kHz | 3500 or 4800 pF ±10% | ≤25 Ω | 60 W | 45 mm | 50 mm
BBCL-40KP50 | 40 ± 0.5 kHz | 4000 pF ±10% | ≤25 Ω | 50 W | 45 mm | 55 mm
BBCL-54KP35 | 54 ± 0.5 kHz | 3200 pF ±10% | ≤25 Ω | 35 W | 38 mm | 36 mm
BBCL-80KP60 | 80 ± 0.5 kHz | 4800 pF ±10% | ≤25 Ω | 60 W | 40 mm | 60 mm

Typical Applications

• Ultrasonic cleaning of industrial components and subassemblies
• Cleaning of metal parts, fasteners and hardware
• Cleaning of electronic and precision components
• Integration in ultrasonic cleaning tanks and modules
• Automated cleaning equipment for production lines

Selection Considerations
Ensure the transducer frequency matches the ultrasonic generator. Confirm the characteristics of the items to be cleaned, tank dimensions, required acoustic power, number and placement of transducers, mounting method and available installation space before final selection.

Technical specifications

• Model: BBCL-40KP100
• Nominal frequency: 40 kHz
• Resonant frequency: 40 ± 0.5 kHz
• Static capacitance: 7800 pF ±10%
• Resonant impedance: ≤25 Ω
• Rated power: 100 W
• Radiating surface diameter: 52 mm
• Height: 48 mm
• Product family frequencies: 20, 25, 28, 40, 54, 80 kHz
• Rated power range in family: 35 to 120 W
