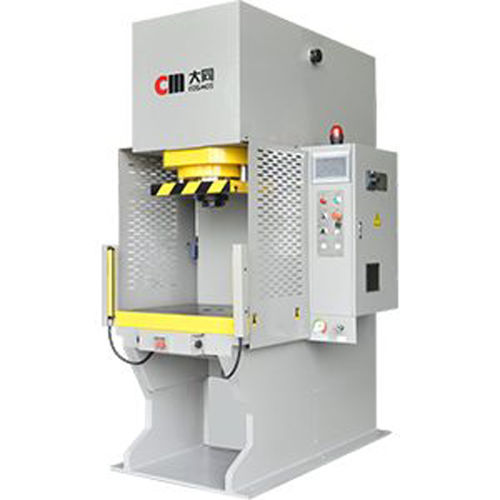

Servo-press CMHC serieshydraulicelectricforming
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, electric
- Function
- forming, stamping, drawing, assembly
- Structure
- ram, frame
- Control
- automatic, PLC-controlled, numerical control
- Other characteristics
- servo-driven, electronic
- Applications
- process
- Force
Max.: 200 tf
Min.: 5 tf
- Opening
Max.: 1,000 mm
(39 in)Min.: 350 mm
(14 in)- Stroke
180 mm, 200 mm, 300 mm, 500 mm
(7 in, 8 in, 12 in, 20 in)- Max. pressure
Max.: 250 bar
(3,626 psi)Min.: 120 bar
(1,740 psi)- Working speed
Max.: 50 mm/s
Min.: 12 mm/s
- Return speed
Max.: 350 mm/s
Min.: 120 mm/s
- Approaching speed
Max.: 300 mm/s
Min.: 160 mm/s
- Hydraulic pump power
Max.: 30 kW
Min.: 2.2 kW
- Weight
Max.: 14,000 kg
(30,865 lb)Min.: 950 kg
(2,094 lb)- Overall length
Max.: 1,400 mm
(55 in)Min.: 580 mm
(23 in)- Overall width
Max.: 2,015 mm
(79 in)Min.: 880 mm
(35 in)- Overall height
Max.: 3,710 mm
(146 in)Min.: 1,770 mm
(70 in)
Description
Open type welded strong frame structure through annealing process, ensures high rigidity and save working space.
Ram cylinder structure: built-in auxiliary cylinder, fast dry run speed, enhances high productivity.
Control system: PLC + HMI
Position setting: used of linear scale to feedback the position of moving bolster, ease to adjust the approaching and pressing stroke length.
Pressure setting: ease to adjust the pressure as pressing process technology requirement.
(Servo motor driving system as option)
Application field
Stamping, forming, shallow drawing and pressing assembly of metallic and non-metallic material;
Forming of spectacles, lock and metal hardware, pressing assembly of electronic connectors, electric components, rotor and stator of motor etc.;
