Centrifugal pump TX serieswaterelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial, chemical, for water treatment
- Applications
- treatment
- Other characteristics
- mechanical, electronic, seal, alkaline
- Flow
Max.: 60 m³/h
(2,118.88 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Head
Max.: 40 m
(131'02" )Min.: 0 m
(0'00" )- Fluid temperature
Max.: 120 °C
(248 °F)Min.: 0 °C
(32 °F)
Description
AISI 316L construction materials

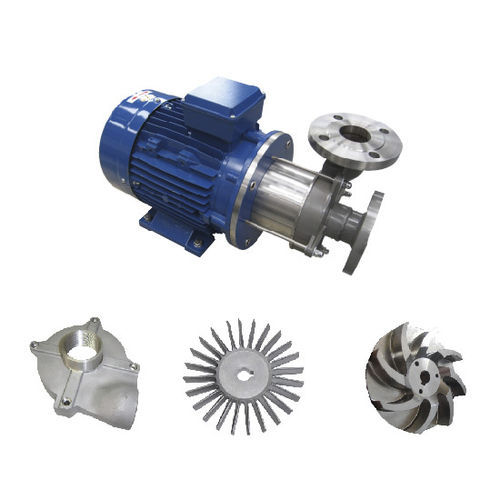

The TX series is a range of horizontal open-impeller centrifugal electric pumps with external mechanical seal.
The TX electric pumps were designed to be used with acidic and alkaline liquids, solvents, viscous products, clear products and products with suspended solid particles. They are made entirely in AISI 316L with low carbon content.
The body of the pump and the impeller are obtained by lost wax, micro-fusion casting.
Available with 6-8-12-24 impeller blades
Fields of application
Chemical, petrochemical, pharmaceutical, paper, textile, food, sugar, dairy, electronic, galvanic, water treatment industries, as well as other hazardous chemical applications.
