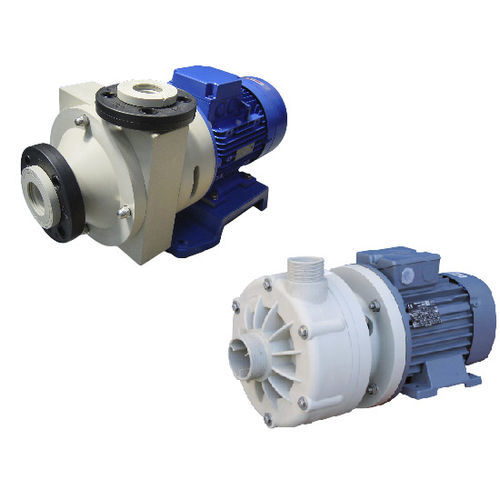

Centrifugal pump TMwaterelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial, chemical, for water treatment
- Applications
- treatment
- Material
- PP, PVC, PVDF
- Other characteristics
- mechanical, small, with open impeller, electronic, seal, alkaline
- Flow
Max.: 150 m³/h
(5,297.20001 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Head
Max.: 45 m
(147'07" )Min.: 0 m
(0'00" )- Fluid temperature
Max.: 95 °C
(203 °F)Min.: 0 °C
(32 °F)
Description
PP-PVC -PVDF construction materials
The TM/MB centrifugal electric pumps are horizontal monobloc pumps with external mechanical seal.
Their particular construction with open impeller allows pumping highly acidic or alkaline fluids, including very dirty liquids containing small suspended solid particles and with viscosity up to 500 cps.
Fields of application
Chemical, petrochemical, pharmaceutical, paper, textile, food, sugar, dairy, electronic, galvanic, water treatment industries, as well as other hazardous chemical applications.
