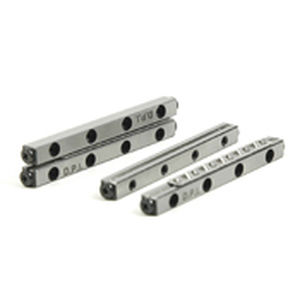

Crossed Roller Rail Sets
Family: NB-2000
Model: NB-2030
Price: $ 143.00
All dimensions in millimeters unless otherwise specified
Profile Dimensions : mm (in)
A : 12 (0.473)
B : 6.0 (0.236)
C : 5.5 (0.217)
D : 2.0 (0.079)
S : 2.0 (0.079)
Mounting Dimensions : mm (in)
M : 15 (0.591)
E : 2.5 (0.0984)
F* : M3
J** : #2
d : 2.55 (0.100)
G : 4.4 (0.173)
H : 2.0 (0.079)
Roller Diameter (D) : 2.0 (0.079)
Roller Distance (P) : 4 (.158)
Increase of Travel for Each Roller Cut-Off : 8 (.316)
Roller Load Carrying Capacity for Each Roller kgs (lbs) : 6 (13.2)
* Thread Size ** Hole F clears screw for through mounting
