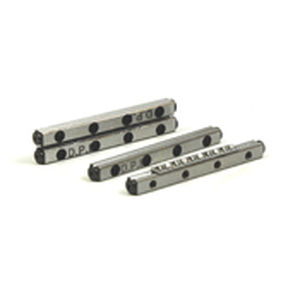

Slide rail NB-1040SS

stainless steelcrossed rollerprecision

Crossed Roller Rail Sets Family: NB-1000 Model: NB-1040SS Price: $ 252.00 All dimensions in millimeters unless otherwise specified Profile Dimensions : mm (in) A : 8.5 (0.335) B : 4.0 (0.158) C : 3.9 (0.154) D : 1.5 (0.059) S : 1.5 (0.059) Mounting Dimensions : mm (in) M : 10 (0.3937) E : 1.8 (0.0709) F* : M2 J** : #0 d : 1.65 (0.065) G : 3.0 (0.118) H : 1.4 (0.055) Roller Diameter (D) : 1.5 (0.059) Roller Distance (P) : 2.5 (0.098) Increase of Travel for Each Roller Cut-Off : 5 (.197) Roller Load Carrying Capacity for Each Roller kgs (lbs) : 4 (8.8) * Thread Size ** Hole F clears screw for through mounting
