Slide rail NB-1020SS
stainless steelcrossed rollerprecision

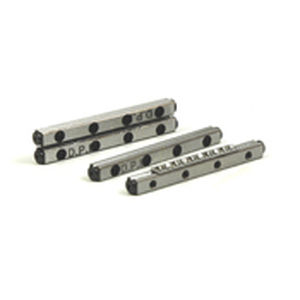

Slide rail - NB-1020SS - DELTRON - stainless steel / crossed roller / precision

Slide rail - NB-1020SS - DELTRON - stainless steel / crossed roller / precision - image - 2

Slide rail - NB-1020SS - DELTRON - stainless steel / crossed roller / precision - image - 3

Add to favorites

Compare this product

Go to the DELTRON website for more information

Characteristics

Type: slide
Material: stainless steel
Rolling element: crossed roller
Other characteristics: precision
Rail length: 20 mm
(0.79 in)

Description

Crossed Roller Rail Sets Family: NB-1000 Model: NB-1020SS Price: $ 208.00 All dimensions in millimeters unless otherwise specified Profile Dimensions : mm (in) A : 8.5 (0.335) B : 4.0 (0.158) C : 3.9 (0.154) D : 1.5 (0.059) S : 1.5 (0.059) Mounting Dimensions : mm (in) M : 10 (0.3937) E : 1.8 (0.0709) F* : M2 J** : #0 d : 1.65 (0.065) G : 3.0 (0.118) H : 1.4 (0.055) Roller Diameter (D) : 1.5 (0.059) Roller Distance (P) : 2.5 (0.098) Increase of Travel for Each Roller Cut-Off : 5 (.197) Roller Load Carrying Capacity for Each Roller kgs (lbs) : 4 (8.8) * Thread Size ** Hole F clears screw for through mounting
