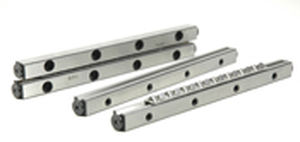

Slide rail NB-6100-ACcrossed rollerprecision
Add to favorites
Compare this product
Characteristics
- Type
- slide
- Rolling element
- crossed roller
- Other characteristics
- precision
- Rail length
100 mm
(3.94 in)
Description
Anti-Creep Crossed Roller Rail Sets
Family: NB-6000
Model: NB-6100-AC
Price: $ 315.00
All dimensions in millimeters unless otherwise specified
Profile Dimensions : mm (in)
A : 31 (1.221)
B : 15 (0.591)
C : 14.2 (0.559)
D : 6.0 (0.236)
S : 3.0 (0.118)
Mounting Dimensions : mm (in)
M : 50 (1.9685)
E : 6.0 (0.236)
F* : M6
J** : M5
d : 5.2 (0.205)
G : 9.5 (0.374)
H : 5.2 (0.205)
* Thread Size ** Hole F clears screw for through mounting
