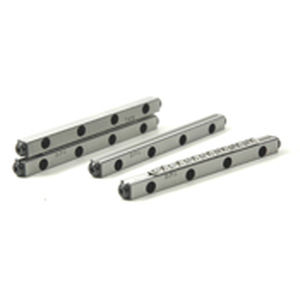

Slide rail NB-3050-ACsteelcrossed rollerprecision
Add to favorites
Compare this product
Characteristics
- Type
- slide
- Material
- steel
- Rolling element
- crossed roller
- Other characteristics
- precision
- Rail length
50 mm
(1.97 in)
Description
Anti-Creep Crossed Roller Rail Sets
Family: NB-3000
Model: NB-3050-AC
Price: $ 146.00
All dimensions in millimeters unless otherwise specified
Profile Dimensions : mm (in)
A : 18 (0.708)
B : 8.0 (0.315)
C : 8.3 (0.327)
D : 3.0 (0.118)
S : 2.0 (0.079)
Mounting Dimensions : mm (in)
M : 25 (0.9843)
E : 3.5 (0.1378)
F* : M4
J** : M3
d : 3.30 (0.130)
G : 6.0 (0.236)
H : 3.1 (0.122)
* Thread Size ** Hole F clears screw for through mounting
