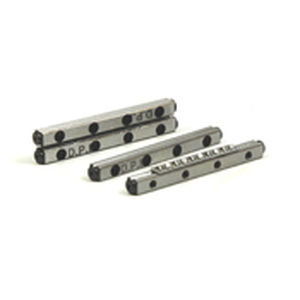

Crossed Roller Rail Sets
Family: NB-1000
Model: NB-1040
Price: $ 173.00
All dimensions in millimeters unless otherwise specified
Profile Dimensions : mm (in)
A : 8.5 (0.335)
B : 4.0 (0.158)
C : 3.9 (0.154)
D : 1.5 (0.059)
S : 1.5 (0.059)
Mounting Dimensions : mm (in)
M : 10 (0.3937)
E : 1.8 (0.0709)
F* : M2
J** : #0
d : 1.65 (0.065)
G : 3.0 (0.118)
H : 1.4 (0.055)
Roller Diameter (D) : 1.5 (0.059)
Roller Distance (P) : 2.5 (0.098)
Increase of Travel for Each Roller Cut-Off : 5 (.197)
Roller Load Carrying Capacity for Each Roller kgs (lbs) : 4 (8.8)
* Thread Size ** Hole F clears screw for through mounting
