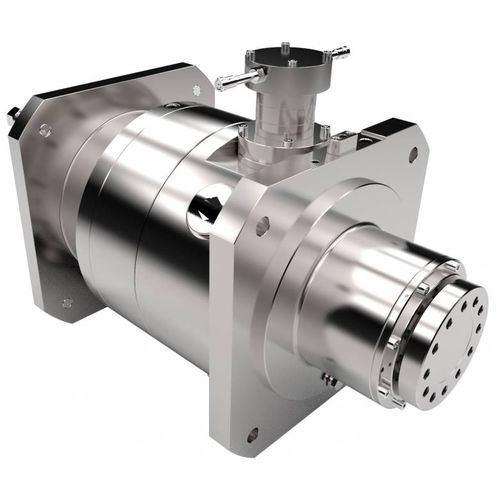

Spur gearbox HSE series
200 - 500 Nm500 - 1000 Nm100 - 200 Nm

Spur gearbox - HSE series - DESCH - 200 - 500 Nm / 500 - 1000 Nm / 100 - 200 Nm
Spur gearbox - HSE series - DESCH - 200 - 500 Nm / 500 - 1000 Nm / 100 - 200 Nm
Spur gearbox - HSE series - DESCH - 200 - 500 Nm / 500 - 1000 Nm / 100 - 200 Nm - image - 2
Spur gearbox - HSE series - DESCH - 200 - 500 Nm / 500 - 1000 Nm / 100 - 200 Nm - image - 3
Add to favorites
Compare this product

Characteristics

Type
spur
Torque
200 - 500 Nm, 500 - 1000 Nm, 100 - 200 Nm, 1 - 2 kNm, 2 - 5 kNm, > 10 kNm, 5 - 10 kNm
Applications
drive, machines, for cutting machines
Other characteristics
vertical, horizontal
Rotational speed

Max.: 7,000 rpm
(43,982.2972 rad.min-1)

Min.: 955 rpm
(6,000.442 rad.min-1)

Power

Max.: 140 kW
(190.35 hp)

Min.: 40 kW
(54.38 hp)

Gear ratio

Max.: 16 unit

Min.: 1 unit

Description

Nidec DESCH main drives for milling-, drilling- and multipurpose machines are characterized by a high power density with low installation size. Especially the combination of a two speed gearbox paired with a spur gearbox as main drive for tool spindles, offers an especially efficient drive- and system solution. The Nidec DESCH main drives can be installed horizontal or vertical. In addition to our main drives for machining main spindles, Nidec DESCH also offers a variety of backlash reduced drive systems for cutting, forming, grinding and bending machine tools.

Catalogs

No catalogs are available for this product.

See all of DESCH‘s catalogs
