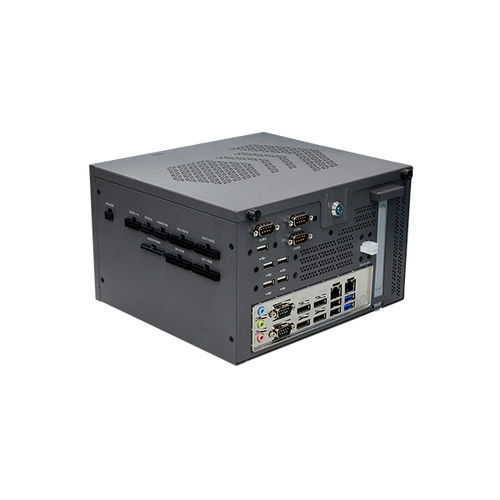

Box computer GM841-HPF

towerembeddedAMD Ryzen™ Embedded

Product Overview

• AMD® Ryzen™ Embedded 8000 Hawk Point APUs, up to 38 TOPs (CPU/GPU/NPU)
• Quad independent displays: 4 DP++
• Support 1 PCIe x16 slot (x8 signal)
• Reliable Data Security (Secure Boot, Secure Content, TPM 2.0)
• NVRAM up to 16MB and retain data at least 5 Years during AC off
• Rich IO: 2 2.5GbE, 5COM + 2Mcrofit (4 ccTalk), 2 USB 3.1 Gen2, 7 USB 2.0, 1 Audio Tower (Mic-in/Line-in/Line-out)
• Provide the hardware circuit design for the SAS 9-bit interface.

Features

• DP
• Quad Independent Display
• DDR5
• Powerful Processor
• AI
• High Security
• Wide Voltage: 12~24V DC-in

Certifications

• CE Certification
• FCC Certification

Tags

• #DDR5
• #Windows 10
• #M.2
• #AMD® Ryzen™ Embedded 8000 Series
• #12~24V DC-in
• #IoT
• #AI
• #Windows 11
• #AMD
• #4K2K Display
• #PCIe x16
• #Windows
• #Linux
• #DP
• #Multiple Expansion
• #CE Certification
• #FCC Certification
• #Gaming
• #2.5G Ethernet

Technical Specifications
System
Processor: AMD® Ryzen™ Embedded 8000 Series Processors, TDP up to 54W
AMD® Ryzen™ Embedded 8845HS, 8C/16T, 8MB Cache, 3.8GHz (5.1GHz), 45W (35-54W)
AMD® Ryzen™ Embedded 8645HS, 6C/12T, 6MB Cache, 4.3GHz (5.0GHz), 45W (35-54W)
AMD® Ryzen™ Embedded 8840U, 8C/16T, 8MB Cache, 3.3GHz (5.1GHz), 28W (15-30W)
AMD® Ryzen™ Embedded 8640U, 6C/12T, 6MB Cache, 3.5GHz (4.9GHz), 28W (15-30W)
Memory: Dual-channel SODIMM up to 64GB, Dual-channel DDR5 5600/5200/4800MHz, with ECC support
BIOS: AMI SPI 256 Mbit

Graphics
Controller: RDNA3 graphics with up to 6 WGPs (Work Group processors)
Feature: OpenGL 4.6, DirectX 12, OpenCL 2.1; HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9, AV1; HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9, AV1
Display: 4 x DP++ (DP1.2: resolution up to 4096x2304 @ 60Hz)
Quad Displays: 4 DP++

Storage
Interface: 2 x SATA 3.0, 1 x 2.5” SSD Bay

Expansion
Interface: 1 x PCIE Gen4 x16 slot (x8 Gen4), 1 x M.2 M Key 2280 (SATA 3.0/ PCIe Gen3x4) (SATA3(opt) selected by BIOS)

Audio
Audio Codec: Realtek ALC888S

Ethernet
Controller: 2 x i226-V (10/100/1000/2500 MHz)

LED
Indicators: 1 x Power LED, 1 x HDD LED

I/O
Ethernet: 2 x 2.5GHz RJ45
Serial: 1 x DB-9 (RS-232/422/485), 1 x DB-9 (RS-232), 1 x DB-9 (TX/RX, TTL-5V), 2 x DB-9 (TX/RX, CCTalk), 2 x Microfit (TX/RX, 2 ccTalk) (Provide the hardware circuit design for the SAS 9-bit interface.)
USB: 2 x USB 3.2 Gen2, 7 x USB 2.0
Display: 4 x DP++
Audio: 1 Audio Jack (Line-in/Line-out/Mic-in), Stereo 6W+6W Class D Audio AMP Output, S/PDIF Out
Cooling: 1 x 8cm System Fan, with replaceable air filter

Watchdog Timer
Output & Interval: System Reset, Programmable via Software from 1 to 255 Seconds

Security
TPM: TPM 2.0

Gaming
Intrusion Detection: 8 x Intrusion detection, Operates With and Without AC Power, Logs Date/Time of latest 64 events, Coin Battery backup to Retain Data for 5 years during AC off
NVRAM: Supports up to 16Mbyte, Coin Battery backup to Retain Data for 5 years during AC off, Support Battery voltage monitoring & Warning
DI/DO: 32-bit Digital Input, 32-bit OC output (29-bit x 500mA, disconnect detection up to 8 meters; 3-bit x 3A)
iButton: Support iButton 1-wire protocol

Power
Type: 12V~24V DC IN
Connector: DC-in Jack or Right Angle Connector (4-pin)

OS Support
Microsoft: Windows 10 IoT Enterprise LTSC(64-bit), Windows 11 22H2 GAC
Linux: Linux Ubuntu 22.04
Software: Supplied with gaming function SDK

Environment
Operating Temperature: 0~45°C
Storage Temperature: -20~85°C
Relative Humidity: 5%~90%

Mechanism
Mounting: Wall Mount
Dimensions (W x H x D): 230 x 140 x 210 mm
Weight: 2.9 kg

Standards and Certifications
Shock: Operation: IEC 60068-2-27 Test Ea: Shock test, Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times); Non-Operation: IEC 60068-2-27 Test Ea: Shock test, Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
Vibration: Operation: IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test, Random,1Grms @ 5~500 Hz, 30min.; Non-Operation: IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test, Sweep sine, 2Grms @ 10~500Hz, 30min.
Certifications: CE, FCC class A (ongoing)

Country of Origin
Taiwan

Characteristics / Technical Specifications

• AMD® Ryzen™ Embedded 8000 Series Processors
• Up to 64GB DDR5 ECC memory
• 4 x DP++ for quad independent displays
• 2 x 2.5GbE LAN
• 2 x SATA 3.0, 1 x 2.5” SSD Bay
• 1 x PCIe Gen4 x16 slot (x8 signal)
• 1 x M.2 M Key 2280 (SATA 3.0/ PCIe Gen3x4)
• 2 x USB 3.2 Gen2, 7 x USB 2.0
• Multiple serial ports including ccTalk support
• TPM 2.0, Secure Boot, Secure Content
• NVRAM up to 16MB, 5 years data retention
• Wall mountable, 230 x 140 x 210 mm, 2.9 kg
• Operating temperature: 0~45°C
• CE, FCC class A certifications
