Expansion computer GM831-CSF
boxembedded8th Generation Intel® Core™

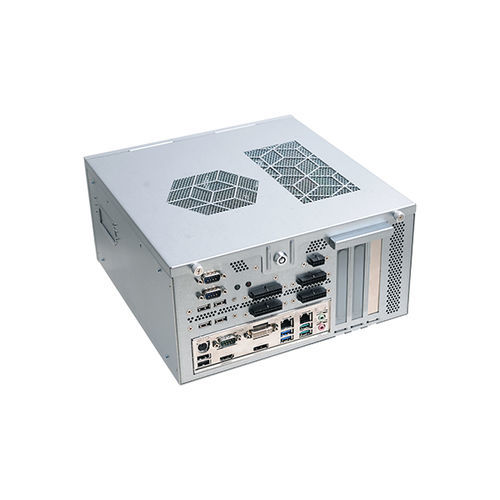

Expansion computer - GM831-CSF - DFI - box / embedded / 8th Generation Intel® Core™
Expansion computer - GM831-CSF - DFI - box / embedded / 8th Generation Intel® Core™
Expansion computer - GM831-CSF - DFI - box / embedded / 8th Generation Intel® Core™ - image - 2
Expansion computer - GM831-CSF - DFI - box / embedded / 8th Generation Intel® Core™ - image - 3
Add to favorites
Compare this product
Go to the DFI website for more information

Characteristics

Type
box, expansion
Configuration
embedded
Processor
9th Generation Intel® Core™, 8th Generation Intel® Core™
Ports
USB 2.0, HDMI, DisplayPort, DVI, DDR4 SO-DIMM, RS-232, NVMe, RS-422, M.2 Key M, 5G, 3G, Mini PCIe, USB 3.1, mSATA
Motherboard format
ATX
Domain
monitoring
Other characteristics
fanless, SSD, HDD

Description

Product Overview
  • 8th/9th Generation Intel® Core™ with Intel® Q370/H310
  • Modularized gaming box discrete gaming I/O card & PSU module
  • Three independent displays: DP++, DVI-D, HDMI
  • Multiple expansion slots: 1 PCIe x16, 2 PCIe x4, 1 mini PCIe, 1 M.2 M key support NVMe
  • Rich I/O connectivity: 2 Intel GbE, 4 USB 3.1, 6 USB 2.0, 3 COM
  • 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)

Features
  • Fanless Design
  • 4K2K Display
  • Linux support

Certifications
  • CE Certification
  • FCC Certification
  • UKCA Certification

Technical Specifications
  • System
    Processor: 8th/9th Generation Intel® Core™ LGA 1151 Socket Processors:
    Intel® Core™ i5-9500E (6 Cores, 9M Cache, up to 4.2 GHz); 65W
    Intel® Core™ i5-9500TE (6 Cores, 9M Cache, up to 3.6 GHz); 35W
    Intel® Core™ i3-9100E (4 Cores, 6M Cache, 3.7 GHz); 65W
    Intel® Core™ i3-9100TE (4 Cores, 6M Cache, to 3.2 GHz); 35W
    Intel® Core™ i7-8700 (6 Cores, 12M Cache, up to 4.6 GHz); 65W
    Intel® Core™ i7-8700T (6 Cores, 12M Cache, up to 4.0 GHz); 35W
    Intel® Core™ i5-8500 (6 Cores, 9M Cache, up to 4.1 GHz); 65W
    Intel® Core™ i5-8500T (6 Cores, 9M Cache, up to 3.5 GHz); 35W
    Intel® Core™ i3-8100 (4 Cores, 6M Cache, 3.6 GHz); 65W
    Intel® Core™ i3-8100T (4 Cores, 6M Cache, to 3.1 GHz); 35W
    Intel® Pentium® G5400 (2 Cores, 4M Cache, 3.7 GHz); 58W
    Intel® Pentium® G5400T (2 Cores, 4M Cache, 3.1 GHz); 35W
    Intel® Celeron® G4900 (2 Cores, 2M Cache, 3.1 GHz); 54W
    Intel® Celeron® G4900T (2 Cores, 2M Cache, 2.9 GHz); 35W
    Chipset: Intel® Q370/H310 Chipset
    Memory: Four 288-pin DIMM up to 64GB, Dual Channel DDR4 2400/2666 MHz
    BIOS: Insyde or AMI UEFI (Supports hash and public key validation)
  • Graphics
    Controller: Intel® HD Gen 9 Graphics
    Feature: OpenGL 5.0, DirectX 12, OpenCL 2.1
    HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
    HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
    Display: 1 x HDMI, 1 x DVI-I (DVI-D signal), 1 x DP++
    HDMI 2.0a: resolution up to 4096x2160 @ 60Hz
    DVI-D: resolution up to 1920x1200 @ 60Hz
    DP++: resolution up to 4096x2106 @ 60Hz
    Triple Displays: DVI-D + HDMI + DP++
  • Storage
    Interface: 5 x SATA 3.0, 1 x 2.5” SSD Bay
  • Expansion
    Interface: 1 x PCIe x16 (Gen 3), 2 x PCIe x4 (Gen 3), 1 x mini PCIe (PCIe/mSATA/USB2.0), 1 x M.2 2242/2260/2280 M key (PCIe Gen3 x4 NVMe)
    Support AMD E9260 Graphic card 180(L)x115(H)mm; up to 75W
  • Audio
    Audio Codec: Realtek ALC888
  • Ethernet
    Controller: 1x Intel i219LM PCIe (10/100/1000Mbps) with iAMT 12.0 (only Core i7/ i5 supports iAMT), 1x Intel I211at PCIe (10/100/1000 Mbps)
  • LED
    Indicators: 1 x Power LED, 1 x HDD LED
  • I/O
    Ethernet: 2 x GbE (RJ-45)
    Serial: COM1 : RS-232/422/485 DB9 (RS-232 w/ power), COM3: RS-232, COM4: RS-232
    USB: 2 x USB 3.1 Gen 2, 2 x USB 3.1 Gen 1, 6 x USB 2.0
    Display: 1 x HDMI, 1 x DVI-I (DVI-D signal), 1 x DP++
    Audio: 1x Line-out, 1x Line-in (colay, opt. by request, MOQ required), 1x Mic-in
    PS/S: 1x PS/2 (mini-DIN-6)
  • Watchdog Timer
    Output & Interval: System Reset, Programmable via Software from 1 to 255 Seconds
  • Security
    TPM: Infineon TPM 1.2/ 2.0 (Available upon request, MOQ required)
  • Gaming
    Intrusion Detection: 6 x Intrusion Detections (one is already applied to PC BOX), Operates with and without AC power, Logs Date/ Time of latest 64 events, 5 Years data retention during AC off
    NVRAM: Supports up to 16Mbyte, Coin Battery backup to Retain Data for 5 years during AC off, Support Battery voltage monitoring & Warning
    DI/DO: 32-bit Digital Input, 32-bit OC output (29-bit x 500mA, disconnect detection for up to 8 meters; 3-bit x 3A)
  • Power
    Type: Flex-ATX 250W (optional )
    Connector: 12V DC-in , 24-pin ATX power
  • OS Support
    Windows 10(64bit), Ubuntu 18.04 LTS 64bit
    Software: Supplied with gaming function SDK
  • Environment
    Operating Temperature: 0~45°C
    Storage Temperature: -20~85°C
    Relative Humidity: 5%~90%
  • Mechanism
    Mounting: Wall Mount
    Dimensions (W x H x D): 275x146.3x296.43mm (without PSU & mounting kits), 365x145.3x296.43 (with PSU & without mounting kits)
    Weight: 4.88 kg (w/o PSU), 6.08 kg (w/ PSU)
  • Standards and Certifications
    Shock: Operation: IEC 60068-2-64 Test Fh: Vibration board-band random test, Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
    Non-Operation: IEC 60068-2-27 Test Ea: Shock test, Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
    Vibration: Operation: IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test, Random,1Grms @ 5~500 Hz, 30min.
    Non-Operation: IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test, Sweep sine, 2Grms @ 10~500Hz, 30min.
    Certifications: CE, FCC class A
  • Country of Origin
    Taiwan
